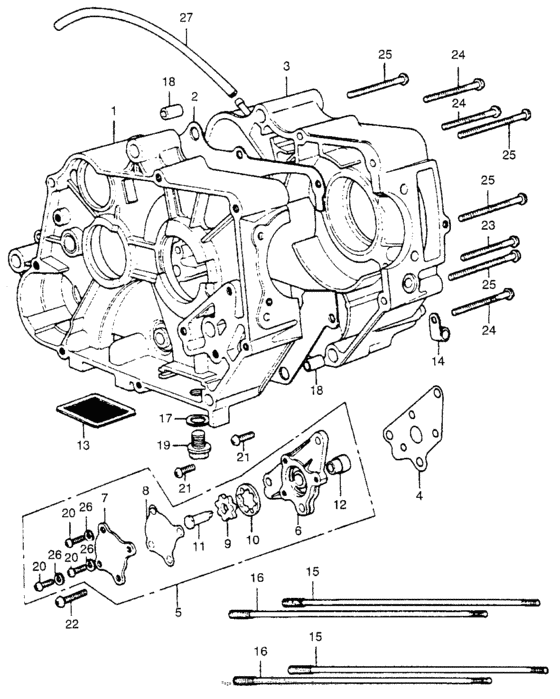

Crankcase + oil pump Diagram Honda ATC ATC70
- Model code
- ATC70K1 A
- Engine Capacity
- 72
- Sales region
- USA
- Frame
- ATC701100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-045-010
Crankcase, r.
|
11100-045-010 |
— | ||
|
2
|
2
11191-035-070 Gasket, crankcase |
11191-035-070 |
US $13.91 |
||
|
3
|
3
11200-098-731
Crankcase, l.
|
11200-098-731 |
— | ||
|
4
|
4
15119-035-020 Gasket |
15119-035-020 |
from US $2.29 |
||
|
5
|
5
15300-035-000
Pump assy,oil
|
15300-035-000 |
— | ||
|
6
|
6
15311-035-013
Pump body,oil
|
15311-035-013 |
— | ||
|
7
|
7
15321-035-000
Cover, oil pump
|
15321-035-000 |
— | ||
|
8
|
8
15329-035-003 Gasket |
15329-035-003 |
from US $3.48 |
||
|
9
|
9
15331-035-004
Rotor,pump inner
|
15331-035-004 |
— | ||
|
10
|
10
15332-035-004
Rotor,pump outer
|
15332-035-004 |
— | ||
|
11
|
11
15382-035-003
Shaft,pump drive
|
15382-035-003 |
— | ||
|
12
|
12
15383-035-003
Pin,oil pump
|
15383-035-003 |
— | ||
|
13
|
13
15421-035-010 Screen, oil filter |
15421-035-010 |
from US $4.82 |
||
|
14
|
14
16236-045-010 Clamp, overflow pipe |
16236-045-010 |
from US $3.11 |
||
|
15
|
15
90031-035-010 Bolt a, cyl stud |
90031-035-010 |
from US $5.18 |
||
|
16
|
16
90032-035-000 Bolt b, cyl stud |
90032-035-000 |
from US $5.18 |
||
|
17
|
17
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
17
|
17
90407-259-000 Gasket (12.5x20) |
90407-259-000 |
from US $1.41 |
||
|
18
|
18
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
19
|
19
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
20
|
20
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
21
|
21
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
22
|
22
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
23
|
23
93500-060-500-A Screw,pan,6x50 |
93500-060-500-A |
from US $0.59 |
||
|
24
|
24
93500-060-600-A Screw,pan,6x60 |
93500-060-600-A |
from US $0.59 |
||
|
25
|
25
93500-060-650-A Screw, pan (6x65) |
93500-060-650-A |
from US $0.74 |
||
|
26
|
26
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
27
|
27
95005-500-0330M Bulk hose (5x3000) |
95005-500-0330M |
from US $14.96 |
