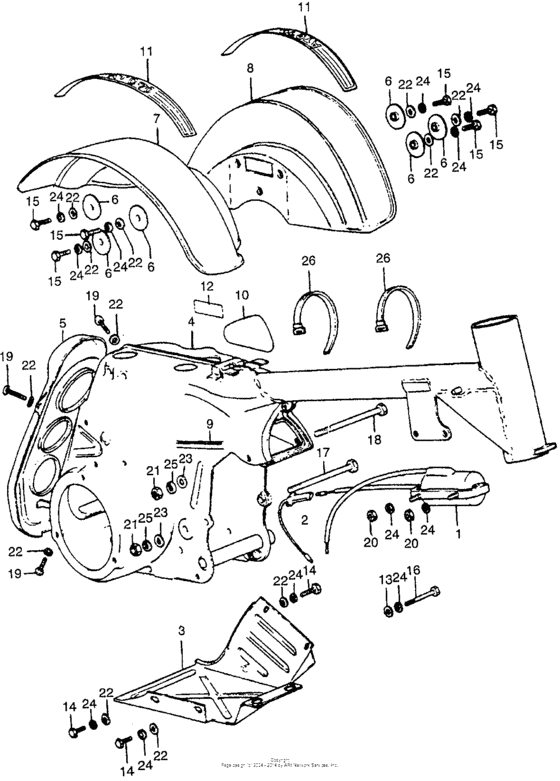

Frame + rear fender + ignition coil Diagram Honda ATC ATC70
- Model code
- ATC70K1 A
- Engine Capacity
- 72
- Sales region
- USA
- Frame
- ATC701100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30500-937-000
Coil assy., ignition
|
30500-937-000 |
— | ||
|
2
|
2
32110-937-000
Wire, ignition
|
32110-937-000 |
— | ||
|
3
|
3
40524-937-010-S
Cvr (lower) *nh10m*
|
40524-937-010-S |
— | ||
|
4
|
4
50100-937-020TR
Frame *r20*
|
50100-937-020TR |
— | ||
|
5
|
5
50201-937-030LH
Cover, rr. *nh16m*
|
50201-937-030LH |
— | ||
|
6
|
6
64348-086-000 Washer, fr. cover fixing |
64348-086-000 |
US $5.73 |
||
|
7
|
7
80100-937-000TR
Fender, r. rr. *r20*
|
80100-937-000TR |
— | ||
|
8
|
8
80200-937-000TR
Fender, l. rr. *r20*
|
80200-937-000TR |
— | ||
|
9
|
9
87125-041-680 Honda Motor Co., Made In Japan, Sticker |
87125-041-680 |
from US $1.42 |
||
|
10
|
10
87130-937-000
Label,caution
|
87130-937-000 |
— | ||
|
11
|
11
87521-937-010
Emblem, rr. fender
|
87521-937-010 |
— | ||
|
12
|
12
87541-937-000
Mark, tire caution
|
87541-937-000 |
— | ||
|
13
|
13
90432-590-000
Washer (6mm)
|
90432-590-000 |
— | ||
|
14
|
14
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
14
|
14
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
14
|
14
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
15
|
15
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
16
|
16
92101-06040-0A Bolt, hex., 6x40 |
92101-06040-0A |
US $0.52 |
||
|
17
|
17
92101-08110-0A Bolt, hex. (8x110) |
92101-08110-0A |
US $1.33 |
||
|
18
|
18
92200-08115-0A
Bolt,hex,8x115
|
92200-08115-0A |
— | ||
| replacement | |||||
|
18
|
18
92201-081-150-A BOLT, HEX (8x115) |
92201-081-150-A |
US $1.33 |
||
|
19
|
19
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
20
|
20
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
21
|
21
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
22
|
22
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
23
|
23
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
24
|
24
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
25
|
25
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
26
|
26
9501462300 Band b3, wire |
9501462300 |
from US $1.55 |
||
