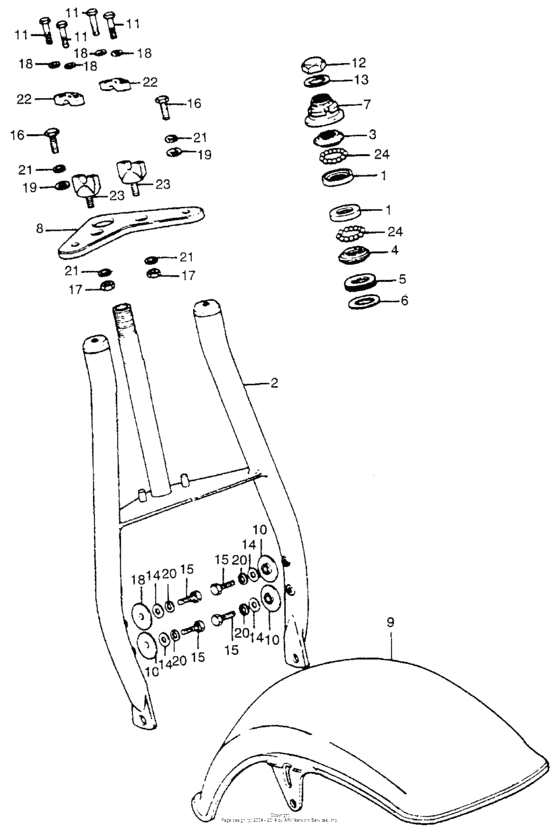

Front fork + front fender Diagram Honda ATC ATC70
- Model code
- ATC70K1 A
- Engine Capacity
- 72
- Sales region
- USA
- Frame
- ATC701100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50301-041-010 Race |
50301-041-010 |
from US $7.70 |
||
|
2
|
2
51400-937-010TR
Fork, fr. *r20*
|
51400-937-010TR |
— | ||
|
3
|
3
53211-028-010 Race, steering cone |
53211-028-010 |
from US $7.55 |
||
|
4
|
4
53212-030-010 Race, steering cone |
53212-030-010 |
from US $7.40 |
||
|
5
|
5
53214-001-010 Dust seal |
53214-001-010 |
from US $2.44 |
||
| replacement | |||||
|
5
|
5
53214-GJG-C20 DUST SEAL |
53214-GJG-C20 |
from US $2.69 |
||
|
6
|
6
53215-001-000 Washer |
53215-001-000 |
from US $1.92 |
||
|
7
|
7
53220-098-670 Thread |
53220-098-670 |
from US $10.21 |
||
|
8
|
8
53231-937-000NQ
Plate *nh42mc*
|
53231-937-000NQ |
— | ||
|
9
|
9
61100-937-000TR
Fender, front
|
61100-937-000TR |
— | ||
|
10
|
10
64348-086-000 Washer, fr. cover fixing |
64348-086-000 |
US $5.73 |
||
|
11
|
11
90117-065-000 Bolt hex 6x28 |
90117-065-000 |
from US $2.96 |
||
|
12
|
12
90304-159-000 Nut, steering stem |
90304-159-000 |
from US $6.22 |
||
|
13
|
13
90503-051-870 Washer |
90503-051-870 |
from US $3.18 |
||
|
14
|
14
90545-292-000 Washer, 6.5x20 |
90545-292-000 |
from US $2.59 |
||
|
15
|
15
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
16
|
16
92101-10020-0A Bolt, hex., 10x20 |
92101-10020-0A |
US $0.59 |
||
|
17
|
17
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
18
|
18
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
19
|
19
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
20
|
20
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
21
|
21
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
22
|
22
95014-21101 Holder a1, handlebar |
95014-21101 |
from US $4.44 |
||
|
23
|
23
9501432100 Holder b1, handlebar |
9501432100 |
from US $7.70 |
||
|
24
|
24
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
