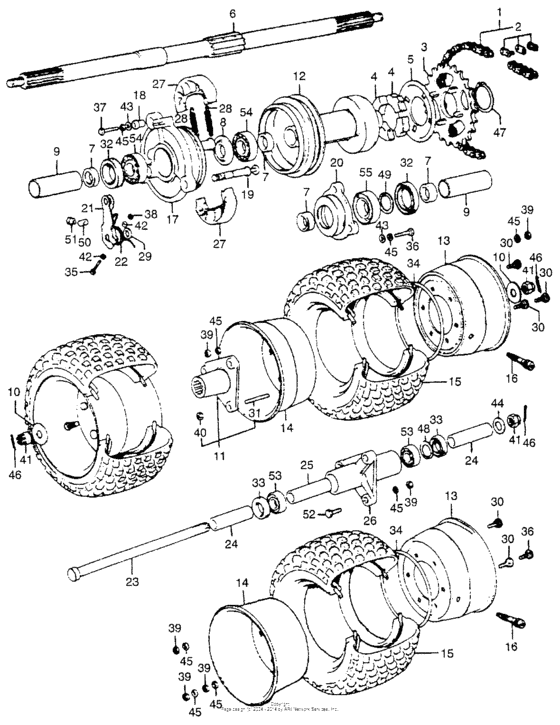

Front wheel + rear wheel Diagram Honda ATC ATC70
- Model code
- ATC70K1 A
- Engine Capacity
- 72
- Sales region
- USA
- Frame
- ATC701100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40530-181-952 Chain,drive (RK420M-80RJ) (80L) |
40530-181-952 |
from US $24.28 |
||
|
1
|
1
40530-937-003 Chain,drive |
40530-937-003 |
US $34.83 |
||
| replacement | |||||
|
1
|
1
40530-181-952 Chain,drive (RK420M-80RJ) (80L) |
40530-181-952 |
from US $24.28 |
||
|
2
|
2
40531-098-003 Master link |
40531-098-003 |
from US $4.29 |
||
|
3
|
3
41201-126-920
Sprocket,driven
|
41201-126-920 |
— | ||
|
4
|
4
41241-051-000 Damper, rr. wheel |
41241-051-000 |
from US $5.18 |
||
|
5
|
5
41245-051-000 Cover, rr |
41245-051-000 |
from US $5.18 |
||
|
6
|
6
42301-937-000
Axle, rr. wheel
|
42301-937-000 |
— | ||
|
7
|
7
42303-937-000
Collar, panel
|
42303-937-000 |
— | ||
|
8
|
8
42305-937-000
Spacer, r. panel
|
42305-937-000 |
— | ||
|
9
|
9
42313-937-000
Pipe, rr. axle
|
42313-937-000 |
— | ||
|
10
|
10
42322-942-000
Washer, 15mm
|
42322-942-000 |
— | ||
|
11
|
11
42400-937-000
Boss, rr. wheel
|
42400-937-000 |
— | ||
|
12
|
12
42601-937-000
Hub, rr. wheel
|
42601-937-000 |
— | ||
|
13
|
13
42716-937-000-S
Rim,outer
|
42716-937-000-S |
— | ||
|
14
|
14
42717-937-000-S
Rim,inner
|
42717-937-000-S |
— | ||
|
15
|
15
4275Z-HB2-003
Tire (16x8.0-7)
|
4275Z-HB2-003 |
— | ||
|
16
|
16
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
17
|
17
43100-937-000
Panel, r
|
43100-937-000 |
— | ||
|
18
|
18
43110-937-000
Cushion, panel
|
43110-937-000 |
— | ||
|
19
|
19
43141-937-010
Cam, rr. brake
|
43141-937-010 |
— | ||
|
20
|
20
43201-937-000
Panel, l
|
43201-937-000 |
— | ||
|
21
|
21
43410-937-000
Arm, rr. brake
|
43410-937-000 |
— | ||
|
22
|
22
43413-937-000 Spring, rr. |
43413-937-000 |
US $11.80 |
||
|
23
|
23
44301-937-000
Axle, fr. wheel
|
44301-937-000 |
— | ||
|
24
|
24
44311-937-000
Collar, fr
|
44311-937-000 |
— | ||
|
25
|
25
44313-937-000
Collar, fr. center
|
44313-937-000 |
— | ||
|
26
|
26
44601-937-000
Hub, fr. wheel
|
44601-937-000 |
— | ||
|
27
|
27
45120-001-010
Shoe, brake
|
45120-001-010 |
— | ||
|
28
|
28
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.15 |
||
|
29
|
29
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
30
|
30
90101-937-000
Bolt,wheel
|
90101-937-000 |
— | ||
|
31
|
31
90927-937-000 Bolt,stud,8x38 |
90927-937-000 |
US $3.20 |
||
|
32
|
32
91201-402-015 Oil seal (35x52x7)Use from Frame SN 1005226 |
91201-402-015 |
from US $11.69 |
||
|
33
|
33
91213-MA6-003
Dust seal,21x35x7
|
91213-MA6-003 |
— | ||
|
34
|
34
91351-937-000 O-ring,wheel |
91351-937-000 |
from US $9.02 |
||
|
35
|
35
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
35
|
35
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
35
|
35
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
36
|
36
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
37
|
37
92101-08035-0A Bolt, hex., 8x35 |
92101-08035-0A |
from US $0.59 |
||
|
38
|
38
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
39
|
39
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
40
|
40
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
41
|
41
94011-140000S Nut, castle, 14mm |
94011-140000S |
from US $1.33 |
||
|
42
|
42
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
43
|
43
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
44
|
44
94101-14000 Washer, plain, 14mm |
94101-14000 |
from US $0.44 |
||
|
45
|
45
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
46
|
46
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
46
|
46
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
46
|
46
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
47
|
47
9451150000 Circlip (50mm) |
9451150000 |
from US $1.48 |
||
|
48
|
48
94520-35000 CirclipINTERNAL, 35MM |
94520-35000 |
from US $0.90 |
||
|
49
|
49
94520-52000 CirclipINTERNAL, 52MM |
94520-52000 |
from US $1.48 |
||
|
50
|
50
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
|
51
|
51
9501541000 Nut a, brake rod adjusting |
9501541000 |
from US $0.81 |
||
|
52
|
52
95100-080-250-0 Bolt, hex., 8x25 |
95100-080-250-0 |
US $0.59 |
||
|
53
|
53
96100-620-201-0 BearingRADIAL BALL, 6202 |
96100-620-201-0 |
from US $4.88 |
||
|
54
|
54
96100-6205010 Bearing, radial ball, 6205 |
96100-6205010 |
from US $8.55 |
||
|
55
|
55
96140-620-501-0 B/brg rad n/com |
96140-620-501-0 |
US $10.21 |
||
