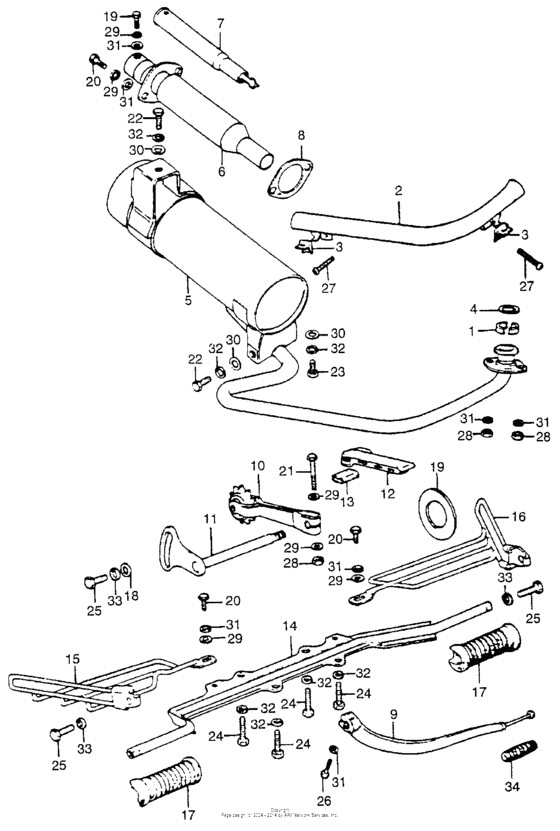

Muffler + step bar Diagram Honda ATC ATC70
- Model code
- ATC70K1 A
- Engine Capacity
- 72
- Sales region
- USA
- Frame
- ATC701100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18233-051-000 Colr, ex. pipe joint |
18233-051-000 |
from US $2.59 |
||
|
2
|
2
18271-937-000
Cover,exhaust
|
18271-937-000 |
— | ||
|
3
|
3
18272-220-000 Band b,exhaust |
18272-220-000 |
from US $4.44 |
||
|
4
|
4
18291-HB2-900 Gasket, ex. pipe |
18291-HB2-900 |
from US $5.33 |
||
|
5
|
5
18300-937-306
Muffler, ex.
|
18300-937-306 |
— | ||
|
6
|
6
18315-937-000
Arrester, spark
|
18315-937-000 |
— | ||
|
7
|
7
18330-937-010
Pipe, diffuser
|
18330-937-010 |
— | ||
|
8
|
8
18374-937-000
Gasket, arrester
|
18374-937-000 |
— | ||
|
9
|
9
24700-937-000
Pedal,gear change
|
24700-937-000 |
— | ||
|
10
|
10
40500-918-000
Tensioner,chain
|
40500-918-000 |
— | ||
|
11
|
11
40510-937-000
Shaft,tensioner
|
40510-937-000 |
— | ||
|
12
|
12
40526-937-000
Slider, chain
|
40526-937-000 |
— | ||
|
13
|
13
40528-937-000
Slider, chain
|
40528-937-000 |
— | ||
|
14
|
14
50610-937-010-B
Bar, step *nh1*
|
50610-937-010-B |
— | ||
|
15
|
15
50620-937-020-B
Guard, r. step *nh1*
|
50620-937-020-B |
— | ||
|
16
|
16
50630-937-010-B
Guard,l-step
|
50630-937-010-B |
— | ||
|
17
|
17
50661-937-000
Rubber,step
|
50661-937-000 |
— | ||
|
18
|
18
87101-937-000
Emblem,recoil
|
87101-937-000 |
— | ||
|
19
|
19
90528-230-000 Washer, 10.2x20 |
90528-230-000 |
from US $4 |
||
|
20
|
20
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
21
|
21
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
21
|
21
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
21
|
21
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
22
|
22
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
22
|
22
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
22
|
22
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
23
|
23
92101-08016-0A Bolt, hex., 8x16 |
92101-08016-0A |
from US $0.52 |
||
|
24
|
24
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
25
|
25
92101-10020-0A Bolt, hex., 10x20 |
92101-10020-0A |
US $0.59 |
||
|
26
|
26
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
27
|
27
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
28
|
28
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
29
|
29
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
30
|
30
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
31
|
31
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
32
|
32
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
33
|
33
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
34
|
34
9501140000 Rubber, shift pedal |
9501140000 |
from US $0.74 |
||
