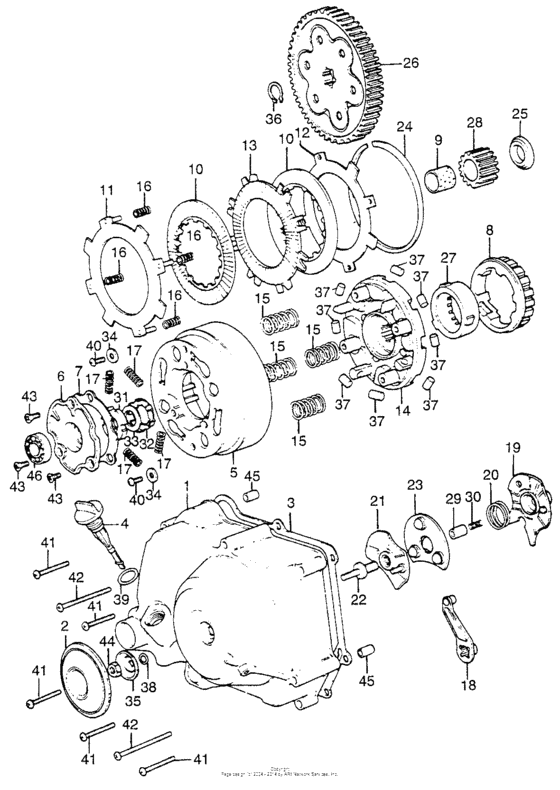

Right crankshaft cover + clutch Diagram Honda ATC ATC70
- Model code
- ATC70K1 A
- Engine Capacity
- 72
- Sales region
- USA
- Frame
- ATC701100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-937-000
Cover, r. crankcase
|
11330-937-000 |
— | ||
|
2
|
2
11335-102-700 Protector, r |
11335-102-700 |
from US $6.96 |
||
|
3
|
3
11394-GW8-681 Gasket, r |
11394-GW8-681 |
US $14.01 |
||
| replacement | |||||
|
3
|
3
11394-GW8-682 Gasket, r |
11394-GW8-682 |
from US $12.58 |
||
|
4
|
4
15650-098-730 Dipstick, oil |
15650-098-730 |
from US $5.03 |
||
|
5
|
5
22101-040-030
Clutch outer
|
22101-040-030 |
— | ||
|
6
|
6
22111-040-000
Cvr, clutch (outer)
|
22111-040-000 |
— | ||
|
7
|
7
22119-040-010 Gasket, clutch cover |
22119-040-010 |
from US $3.40 |
||
|
8
|
8
22120-040-030 Center, clutch (17t) |
22120-040-030 |
from US $44.70 |
||
|
9
|
9
22131-035-030 Guide, clutch center |
22131-035-030 |
from US $11.25 |
||
|
10
|
10
22201-GW8-681 Disk a, cl friction |
22201-GW8-681 |
from US $9.77 |
||
|
11
|
11
22310-GB0-910 Plate a, clutch |
22310-GB0-910 |
from US $11.40 |
||
|
12
|
12
22321-046-020 Plate b, clutch |
22321-046-020 |
from US $11.99 |
||
|
13
|
13
22331-GW8-681 Disk b, cl friction |
22331-GW8-681 |
from US $9.77 |
||
|
14
|
14
22351-086-010 Plate,drive |
22351-086-010 |
US $59.93 |
||
|
14
|
14
22351-086-020 Plate,drive |
22351-086-020 |
US $59.93 |
||
|
15
|
15
22401-092-010 Spring,clutch |
22401-092-010 |
from US $4 |
||
|
16
|
16
22411-092-000
Spring clutchfree
|
22411-092-000 |
— | ||
|
17
|
17
22421-040-000 Spring |
22421-040-000 |
from US $2.59 |
||
|
18
|
18
22811-040-020 Lever, clutch |
22811-040-020 |
from US $20.40 |
||
|
19
|
19
22820-918-000 Plate,clutch cam |
22820-918-000 |
from US $15.30 |
||
| replacement | |||||
|
19
|
19
22820-918-020 Plate, clutch cam |
22820-918-020 |
from US $12.43 |
||
|
19
|
19
22820-918-010 Plate, clutch cam |
22820-918-010 |
from US $13.47 |
||
| replacement | |||||
|
19
|
19
22820-918-020 Plate, clutch cam |
22820-918-020 |
from US $12.43 |
||
|
19
|
19
22820-918-020 Plate, clutch cam |
22820-918-020 |
from US $12.43 |
||
|
20
|
20
22825-046-000 Spring, cam plate side |
22825-046-000 |
from US $2.15 |
||
|
21
|
21
22830-041-000 Plate comp., clutch lifter |
22830-041-000 |
from US $10.21 |
||
|
22
|
22
22846-040-010 Bolt, clutch adj |
22846-040-010 |
from US $4.88 |
||
|
23
|
23
22860-046-000 Retainer, clutch ball |
22860-046-000 |
from US $5.92 |
||
|
24
|
24
22901-001-000 Set-ring (101.5mm) |
22901-001-000 |
from US $3.70 |
||
|
25
|
25
22911-GB4-680 Collar (17mm) |
22911-GB4-680 |
from US $3.92 |
||
|
26
|
26
23110-086-030 Gear (69t) |
23110-086-030 |
from US $79.56 |
||
|
27
|
27
23112-086-020
Outer,drive gear
|
23112-086-020 |
— | ||
|
28
|
28
23120-086-020 Gear (17t) |
23120-086-020 |
from US $30.46 |
||
|
29
|
29
25551-918-007 Through, oil |
25551-918-007 |
US $8.14 |
||
| replacement | |||||
|
29
|
29
25551-GEL-A80 Through, oil |
25551-GEL-A80 |
from US $3.89 |
||
|
30
|
30
25555-065-000 Spring, oil through |
25555-065-000 |
from US $1.92 |
||
|
31
|
31
90231-087-010 Nut, lock (14mm) |
90231-087-010 |
from US $3.48 |
||
|
32
|
32
90431-086-000 Washer, lock (14mm) |
90431-086-000 |
from US $2.29 |
||
|
33
|
33
90432-086-000 Washer b, lock |
90432-086-000 |
from US $4.88 |
||
|
34
|
34
90483-041-000 Washer, stopper |
90483-041-000 |
from US $2.29 |
||
|
35
|
35
90485-102-701 Washer |
90485-102-701 |
US $4.59 |
||
|
36
|
36
90601-001-000 Circlip, external, 17mm |
90601-001-000 |
from US $2.22 |
||
|
37
|
37
91101-039-000
Roller
|
91101-039-000 |
— | ||
|
38
|
38
91306-HB3-003 O-ring (8x1.7) |
91306-HB3-003 |
from US $2.15 |
||
|
39
|
39
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
39
|
39
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4 |
||
|
40
|
40
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
41
|
41
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
42
|
42
93500-060-650-A Screw, pan (6x65) |
93500-060-650-A |
from US $0.74 |
||
|
43
|
43
93600-050-100-A Screw, flat, 5x10 |
93600-050-100-A |
from US $0.37 |
||
|
44
|
44
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
45
|
45
9430108120 Pin a, dowel, 8x12 |
9430108120 |
from US $0.89 |
||
|
46
|
46
96100-6000000 Bearing, radial ball, 6000 |
96100-6000000 |
from US $4.74 |
||
