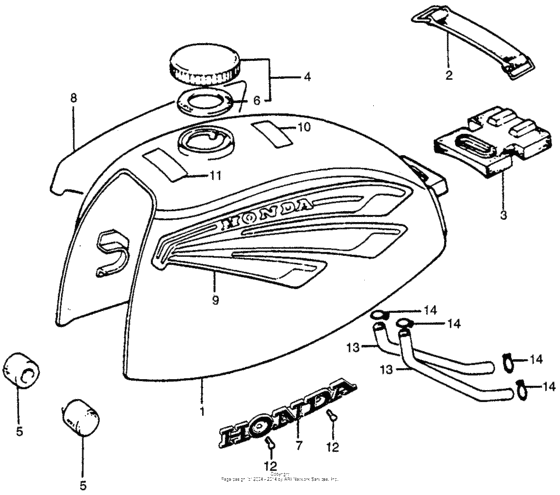

Fuel tank Diagram Honda ATC ATC90
- Model code
- ATC90 A
- Engine Capacity
- 90
- Sales region
- USA
- Базовая модель
- ATC90 A
- Frame
- US90100122 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC90
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17500-918-154EL
Tk, fuel *pb52/nh0*
|
17500-918-154EL |
— | ||
|
1
|
1
17500-918-154EM
Tank, fuel *r8/nh0*
|
17500-918-154EM |
— | ||
|
1
|
1
17500-918-154EN
Tank, fuel *y23/nh1*
|
17500-918-154EN |
— | ||
|
1
|
1
17500-918-154EP
Tank, fuel *g26/nh1*
|
17500-918-154EP |
— | ||
|
2
|
2
17505-918-000
Band,fuel tank
|
17505-918-000 |
— | ||
|
3
|
3
17506-918-000
Cushion,fuel tank
|
17506-918-000 |
— | ||
|
4
|
4
17620-102-730
Cap comp,sub tank
|
17620-102-730 |
— | ||
|
5
|
5
17611-303-000 Rubber, fr |
17611-303-000 |
from US $7.99 |
||
|
6
|
6
17631-096-701
Gasket
|
17631-096-701 |
— | ||
| replacement | |||||
|
6
|
6
17631-096-702 Gasket |
17631-096-702 |
from US $3.98 |
||
|
7
|
7
87123-918-000
Emblem a, fuel tank
|
87123-918-000 |
— | ||
|
7
|
7
87124-918-000
Emblem b, fuel tank
|
87124-918-000 |
— | ||
|
10
|
10
87505-918-010
Plate,caution
|
87505-918-010 |
— | ||
|
11
|
11
87560-323-670-A Mark,caution |
87560-323-670-A |
from US $4 |
||
|
11
|
11
87560-323-670ZA Mark,drive c*nh1* |
87560-323-670ZA |
from US $4.06 |
||
|
12
|
12
93700-030-060-B Screw,oval,3x6 |
93700-030-060-B |
from US $0.52 |
||
|
13
|
13
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
14
|
14
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
