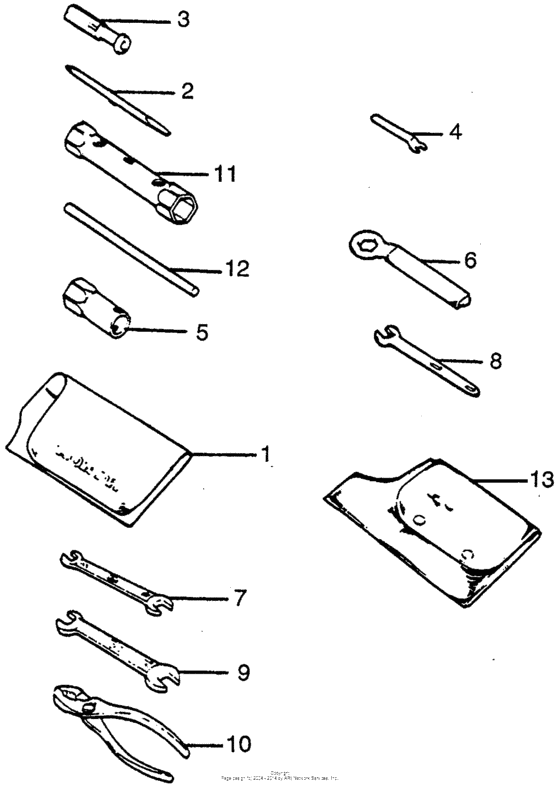

Tools Diagram Honda ATC ATC90
- Model code
- ATC90 A
- Engine Capacity
- 90
- Sales region
- USA
- Базовая модель
- ATC90 A
- Frame
- US90100122 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC90
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
89102-538-000 Driver, SCREW(NO.2 + -) |
89102-538-000 |
from US $2.37 |
||
|
3
|
3
89103-538-000 Grip |
89103-538-000 |
US $6.78 |
||
|
4
|
4
07908-KE9-020-0 Wrench, tappet adj |
07908-KE9-020-0 |
US $58.26 |
||
|
5
|
5
89212-028-000
Spanner,box 17mm
|
89212-028-000 |
— | ||
|
6
|
6
89214-001-000
Wrench
|
89214-001-000 |
— | ||
|
7
|
7
9900108120 Spanner, 8x12 |
9900108120 |
from US $3.11 |
||
|
8
|
8
99001-09000 Wrench 9mm |
99001-09000 |
US $3.11 |
||
|
9
|
9
9900110140 Spanner, 10x14 |
9900110140 |
from US $3.55 |
||
|
10
|
10
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
10
|
10
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
11
|
11
99004-18190 Wrench, box (p18x19) |
99004-18190 |
from US $4.29 |
||
|
12
|
12
9900501000 Bar a, handle |
9900501000 |
from US $1.48 |
||
|
13
|
13
99008-01600 BagTOOL, 160MM |
99008-01600 |
from US $2.29 |
||
