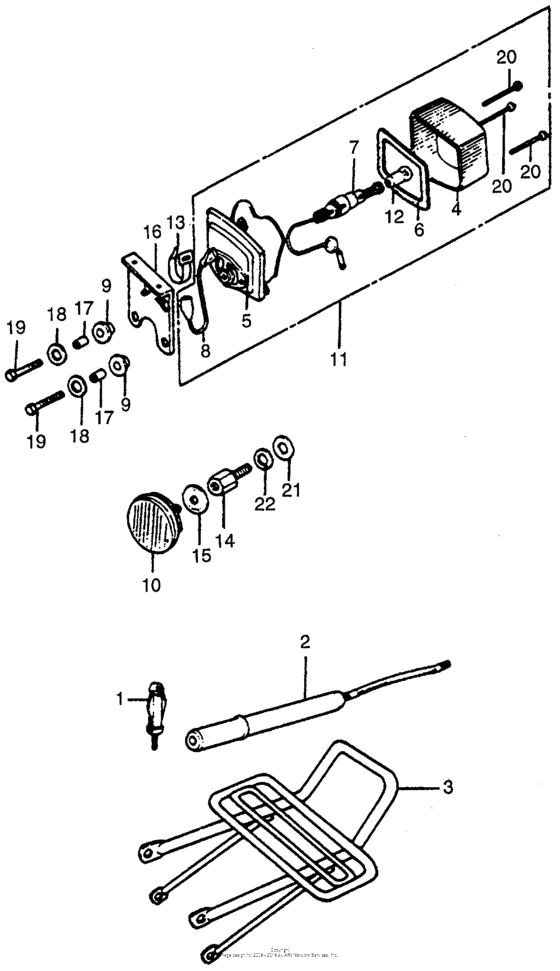

Optional parts Diagram Honda ATC ATC90
- Model code
- ATC90K2 A
- Engine Capacity
- 90
- Sales region
- USA
- Базовая модель
- ATC90K2 A
- Frame
- ATC901300001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89301-918-672
Gauge, tire
|
89301-918-672 |
— | ||
|
2
|
2
0Y105-25900
Tire, pump
|
0Y105-25900 |
— | ||
|
3
|
3
04503-918-010
Carrier
|
04503-918-010 |
— | ||
|
4
|
4
33702-329-671
Lens,tail light
|
33702-329-671 |
— | ||
|
5
|
5
33703-329-670
Base,tail light
|
33703-329-670 |
— | ||
|
6
|
6
33709-092-671 Packing,tail lt. |
33709-092-671 |
from US $4.66 |
||
|
7
|
7
33710-918-670
Socket, taillight
|
33710-918-670 |
— | ||
|
8
|
8
33711-918-670
Cable
|
33711-918-670 |
— | ||
|
9
|
9
33719-077-671 Packing,tail,ba,b |
33719-077-671 |
from US $2.14 |
||
|
10
|
10
33741-340-670 Reflector,reflex |
33741-340-670 |
US $34.15 |
||
| replacement | |||||
|
10
|
10
33741-102-870 Reflector, fr. |
33741-102-870 |
from US $28.70 |
||
|
11
|
11
33800-918-670
Light unit,tail
|
33800-918-670 |
— | ||
|
12
|
12
34902-202-000 Bulb, dash (6v 3w) |
34902-202-000 |
from US $2.29 |
||
|
13
|
13
38903-538-000
Strap, holding
|
38903-538-000 |
— | ||
|
14
|
14
51420-918-670
Bolt,reflectors
|
51420-918-670 |
— | ||
|
15
|
15
51421-918-670
Seat,reflector
|
51421-918-670 |
— | ||
|
16
|
16
81201-918-670
Stay, taillight
|
81201-918-670 |
— | ||
|
17
|
17
84706-342-000
Collar,tail light
|
84706-342-000 |
— | ||
|
18
|
18
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
19
|
19
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
20
|
20
93500-040-554-J Screw,pan,4x55 |
93500-040-554-J |
from US $0.44 |
||
|
21
|
21
9410108200 Washer, plain, 8mm |
9410108200 |
from US $0.44 |
||
|
22
|
22
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
