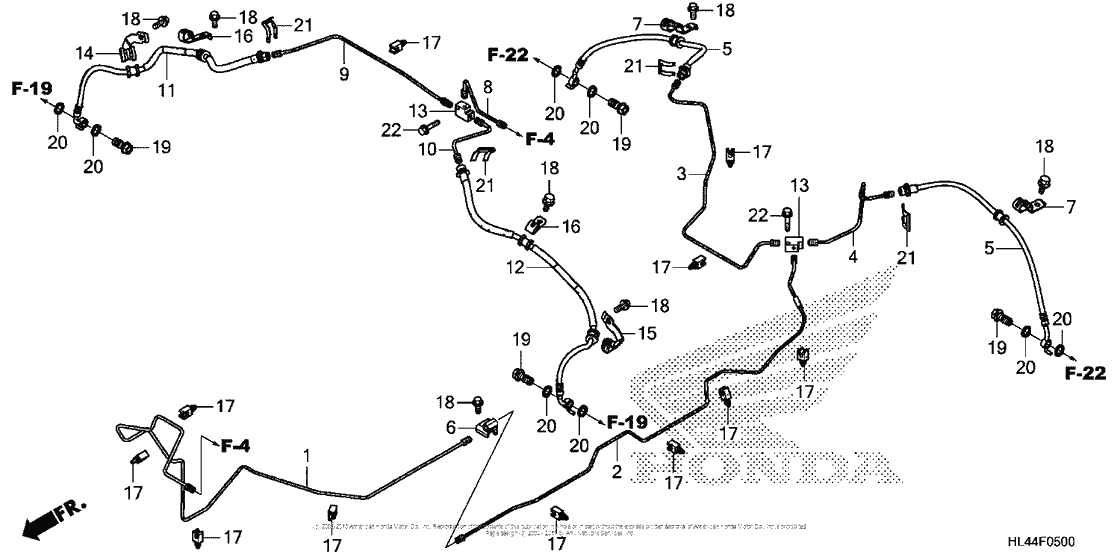

Brake Pipe Diagram Honda SXS 1000 Pioneer 1000
- Model code
- SXS1000M3 A
- Engine Capacity
- 1000
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE048 - G4000001
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43122-HL4-A00 PIPE, MIDDLE BRAKE |
43122-HL4-A00 |
US $127.08 |
||
|
2
|
2
43123-HL4-A00 PIPE, RR. BRAKE |
43123-HL4-A00 |
US $11.31 |
||
|
3
|
3
43124-HL4-A00 PIPE, R. RR. BRAKE |
43124-HL4-A00 |
US $8.89 |
||
|
4
|
4
43125-HL4-A00 PIPE, L. RR. BRAKE |
43125-HL4-A00 |
US $8.13 |
||
|
5
|
5
43131-HL4-A01 HOSE, RR. BRAKE |
43131-HL4-A01 |
US $21.85 |
||
|
6
|
6
43151-HL4-A00 PIPE, JOINT |
43151-HL4-A00 |
US $38.34 |
||
|
7
|
7
43461-HL4-A00 CLAMP A, BRAKE HOSE |
43461-HL4-A00 |
US $6.85 |
||
|
8
|
8
45125-HL4-A00 PIPE |
45125-HL4-A00 |
US $75.77 |
||
|
9
|
9
45126-HL4-A00 PIPE, R. FR. BRAKE |
45126-HL4-A00 |
US $8.02 |
||
|
10
|
10
45127-HL4-A00 PIPE, L. FR. BRAKE |
45127-HL4-A00 |
US $50.34 |
||
|
11
|
11
45131-HL4-A01 HOSE, R. FR. BRAKE |
45131-HL4-A01 |
US $25.08 |
||
|
12
|
12
45132-HL4-A01 HOSE, L. FR. BRAKE |
45132-HL4-A01 |
US $25.08 |
||
|
13
|
13
45151-MCA-003 Joint pipe |
45151-MCA-003 |
from US $12.22 |
||
|
14
|
14
45461-HL4-A00 CLAMP, R. BRAKE HOSE |
45461-HL4-A00 |
US $2.92 |
||
|
15
|
15
45462-HL4-A00 CLAMP, L. BRAKE HOSE |
45462-HL4-A00 |
US $2.92 |
||
|
16
|
16
45463-HL4-A00 CLAMP, BRAKE HOSE |
45463-HL4-A00 |
US $1.38 |
||
|
17
|
17
46998-S04-003 ClipCLUTCH PIPE (NATURAL) |
46998-S04-003 |
from US $2.37 |
||
|
18
|
18
90107-HC5-000 Bolt, flange (6x10) |
90107-HC5-000 |
from US $1.78 |
||
|
19
|
19
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
20
|
20
90545-300-000 Washer |
90545-300-000 |
from US $1.21 |
||
|
21
|
21
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
22
|
22
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
