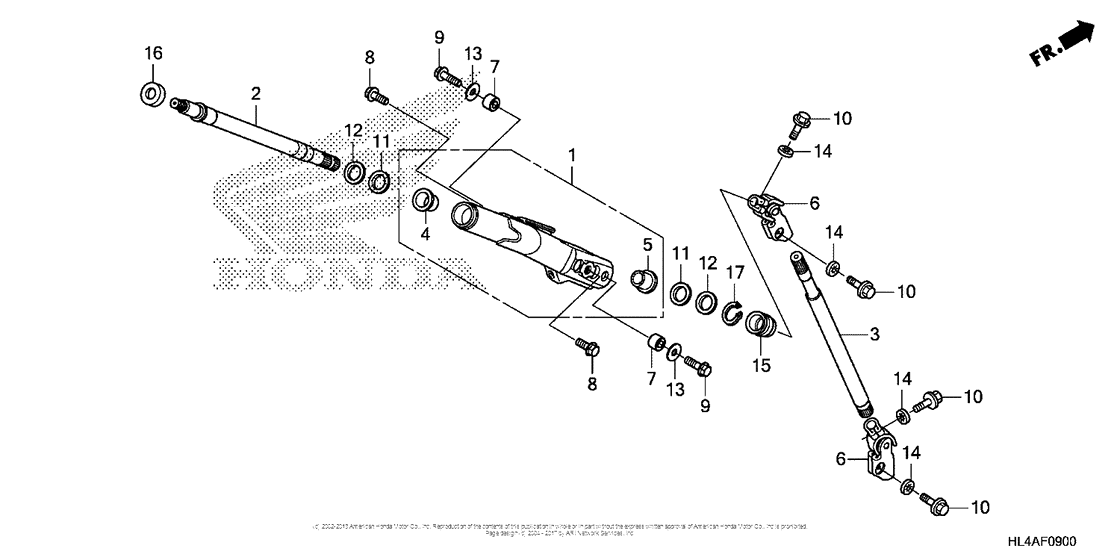

Steering Shaft Diagram Honda SXS 1000 Pioneer 1000
- Model code
- SXS1000M3 A
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA
- Frame
- 1HFVE048 - H4100001
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53255-HL4-A50 COLUMN SUB-ASSY. |
53255-HL4-A50 |
US $172.94 |
||
|
2
|
2
53314-HL4-A00 SHAFT, STRG (UPPER) |
53314-HL4-A00 |
US $55.90 |
||
|
3
|
3
53315-HL4-A50 SHAFT, STRG (LOWER) |
53315-HL4-A50 |
US $47.41 |
||
|
4
|
4
53316-HL3-A00 Bush, steering shaft |
53316-HL3-A00 |
US $9.16 |
||
|
5
|
5
53317-HL3-A00 Bush, steering shaft |
53317-HL3-A00 |
US $9.52 |
||
|
6
|
6
53323-SW5-003 Joint comp. bSTEERING |
53323-SW5-003 |
from US $57.09 |
||
|
7
|
7
53711-HL4-A00 COLR, STEERING PIVOT |
53711-HL4-A00 |
US $5.93 |
||
|
8
|
8
90101-MFY-A00 Bolt, flange (8x16) |
90101-MFY-A00 |
from US $2.74 |
||
|
9
|
9
90133-HL4-A00 BOLT, FLANGE (8X27) |
90133-HL4-A00 |
from US $2.63 |
||
|
10
|
10
90135-SB0-003 BoltSTEERING YOKE, 8X28 (NIPPON SEIKO) |
90135-SB0-003 |
from US $0.77 |
||
|
11
|
11
90454-428-000 Washer, thrust, 20mm |
90454-428-000 |
from US $2.89 |
||
|
12
|
12
90501-HL4-A00 WASHER, WAVE (20MM) |
90501-HL4-A00 |
US $4.15 |
||
|
13
|
13
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
14
|
14
90511-671-003 WasherTOOTHED LOCK |
90511-671-003 |
US $0.19 |
||
|
15
|
15
91257-HL3-A01 Seal, steering shaft |
91257-HL3-A01 |
US $7.12 |
||
|
16
|
16
91262-HL3-A01 Seal, steering shaft |
91262-HL3-A01 |
US $8.31 |
||
|
17
|
17
94510-20000 CirclipEXTERNAL, 20MM |
94510-20000 |
from US $0.55 |
