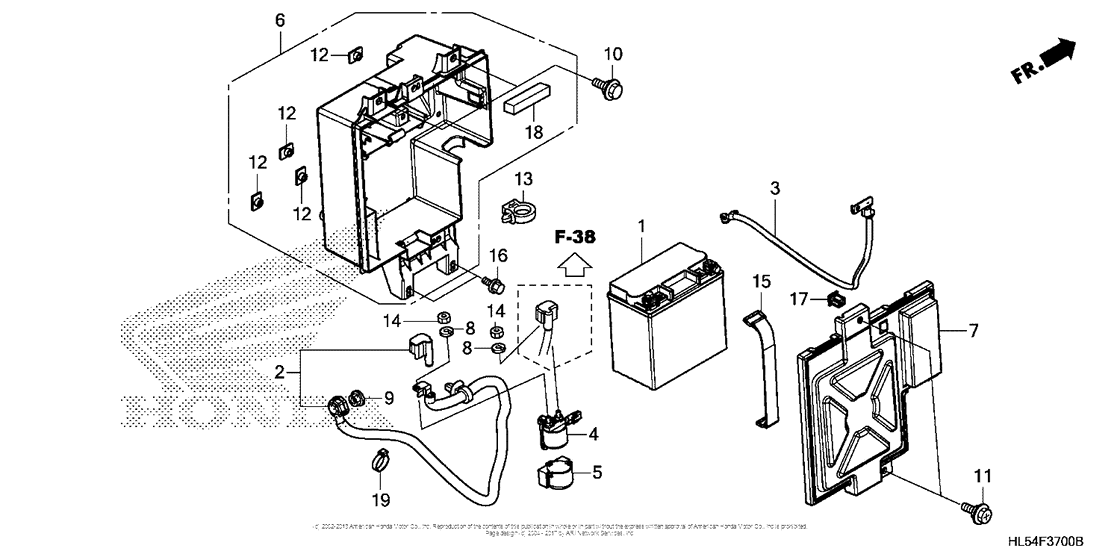

Battery Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-HR0-F01AH Battery (gyz16h) |
31500-HR0-F01AH |
US $143.46 |
||
|
2
|
2
32405-HL5-A00 CABLE, STARTER MOTOR |
32405-HL5-A00 |
US $28.34 |
||
|
3
|
3
32601-HL5-A00 CABLE |
32601-HL5-A00 |
US $24.96 |
||
|
4
|
4
35850-HP6-A01 Sw, starter magnetic |
35850-HP6-A01 |
US $102.19 |
||
|
5
|
5
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
6
|
6
50455-HL5-A00 BOX ASSY., BATTERY |
50455-HL5-A00 |
US $59.64 |
||
|
7
|
7
50453-HL5-A00 COVER, BATTERY |
50453-HL5-A00 |
US $14.62 |
||
|
8
|
8
90052-ZA0-800 Washer, spring, 6mm |
90052-ZA0-800 |
from US $0.74 |
||
|
9
|
9
90071-MB0-000 Nut-washer, 6mm |
90071-MB0-000 |
from US $2.22 |
||
|
10
|
10
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
11
|
11
90111-KFE-700 BOLT, FLANGE (6MM) |
90111-KFE-700 |
from US $3.78 |
||
|
12
|
12
90303-HA0-680 Nut, special (6x7) |
90303-HA0-680 |
from US $2.59 |
||
|
13
|
13
90652-HC4-003 ClampHARNESS |
90652-HC4-003 |
from US $2.03 |
||
|
14
|
14
94002-063900S Nut, hex., 6mm |
94002-063900S |
from US $0.52 |
||
|
15
|
15
9501217001 Band f, battery |
9501217001 |
from US $4.74 |
||
|
16
|
16
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
17
|
17
38211-SNA-A21 FuseBLOCK (40A) |
38211-SNA-A21 |
from US $3.08 |
||
|
18
|
18
61108-HR3-A20 Seal b, fr. fender |
61108-HR3-A20 |
US $6.78 |
||
|
19
|
19
90650-MA6-720 Band.harness |
90650-MA6-720 |
from US $2.89 |
