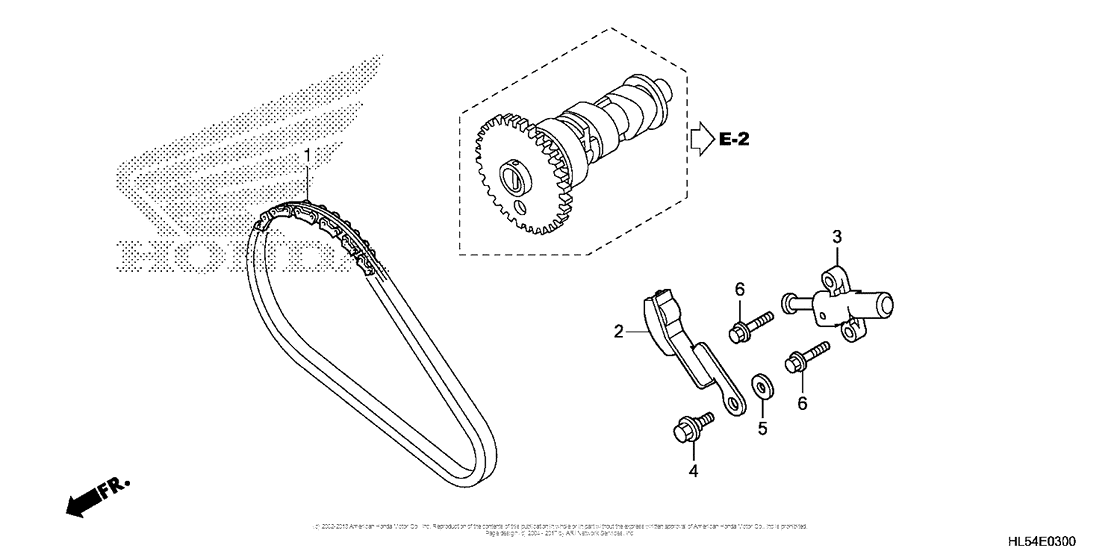

Cam Chain + Tensioner Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14401-HP5-601 Chain, cam |
14401-HP5-601 |
from US $26.66 |
||
|
2
|
2
14510-HP5-600 Tensioner, cam chain |
14510-HP5-600 |
US $30.70 |
||
|
3
|
3
14540-HN5-671 Adjuster, tensioner |
14540-HN5-671 |
from US $33.05 |
||
|
4
|
4
90023-MR5-670 Bolt |
90023-MR5-670 |
from US $2.66 |
||
|
5
|
5
90417-360-000 Washer, drum stopper |
90417-360-000 |
from US $2.22 |
||
|
6
|
6
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.59 |
