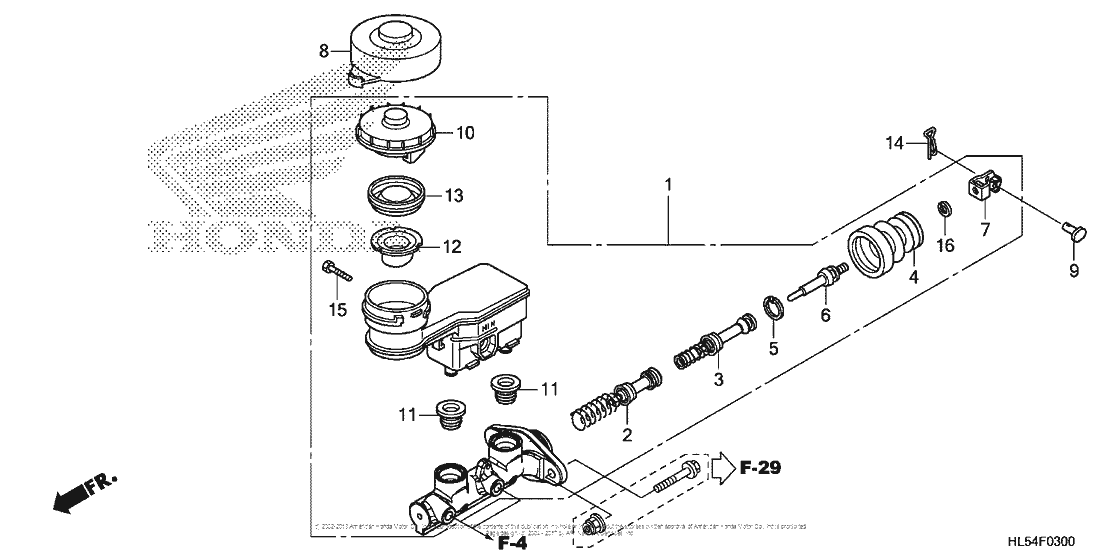

Front Brake Master Cylinder Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45500-HL5-315 MASTER CYLINDER |
45500-HL5-315 |
US $206.65 |
||
|
2
|
2
45502-HL1-A01 Piston, primary |
45502-HL1-A01 |
from US $14.64 |
||
|
3
|
3
45503-HL1-A01 Piston, secondary |
45503-HL1-A01 |
from US $17.46 |
||
|
4
|
4
45504-HL1-A01 Boot |
45504-HL1-A01 |
from US $9.55 |
||
|
5
|
5
45505-HL1-A01 Circlip |
45505-HL1-A01 |
from US $1.55 |
||
|
6
|
6
45525-HL5-A01 ROD, PUSH |
45525-HL5-A01 |
US $18.34 |
||
|
7
|
7
46151-SE0-003 YokePUSH ROD(NISSIN) |
46151-SE0-003 |
US $18.07 |
||
|
8
|
8
46163-HL1-A00 Cover |
46163-HL1-A00 |
US $23.12 |
||
|
9
|
9
46512-S70-000 PinPEDAL |
46512-S70-000 |
from US $2.31 |
||
|
10
|
10
46662-HL3-A02 CAP, RESERVE TANK |
46662-HL3-A02 |
US $3.86 |
||
|
11
|
11
46665-S04-J01 Grommet |
46665-S04-J01 |
from US $5.33 |
||
|
12
|
12
46666-S2K-003 FilterBRAKE RESERVOIR |
46666-S2K-003 |
from US $5.33 |
||
|
13
|
13
46669-S5A-003 Diaphragm |
46669-S5A-003 |
from US $8.88 |
||
|
14
|
14
46911-S70-003 Pin, LOCK(8MM) |
46911-S70-003 |
from US $2.22 |
||
|
15
|
15
92301-05025-0H BoltRECESSED, 5X25 |
92301-05025-0H |
from US $0.52 |
||
|
16
|
16
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
