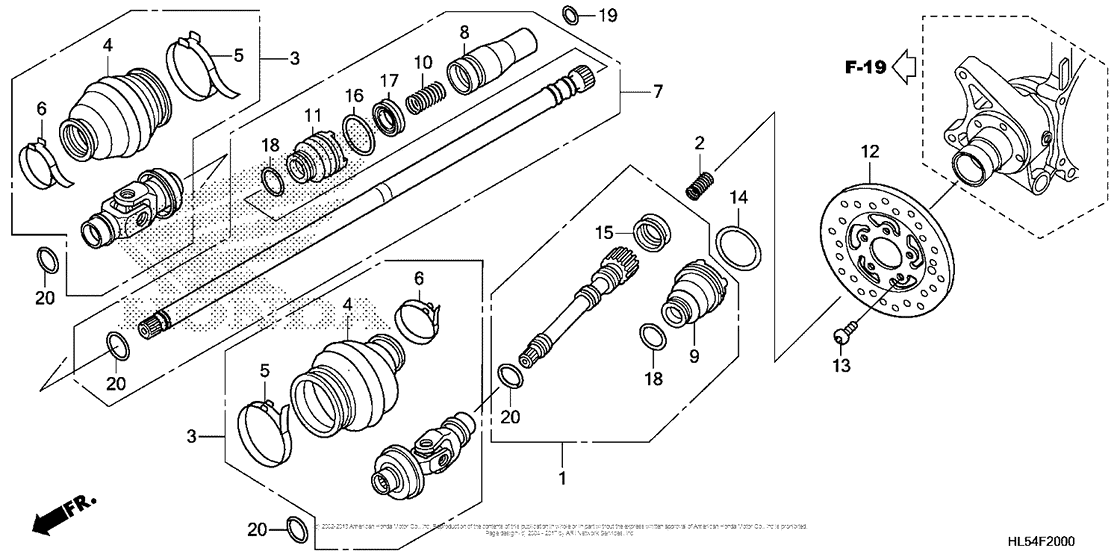

Propeller Shaft Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40200-HL5-A00 SHAFT, RR. PROPELLER |
40200-HL5-A00 |
US $70.40 |
||
|
2
|
2
40215-HL3-A00 Spring, rr. shaft |
40215-HL3-A00 |
US $2.11 |
||
|
3
|
3
40300-HR3-A20 Joint assy., yoke |
40300-HR3-A20 |
US $89.59 |
||
|
4
|
4
40321-HR0-F00 Boot, yoke joint |
40321-HR0-F00 |
from US $7.91 |
||
|
5
|
5
40322-HN8-000 Band a |
40322-HN8-000 |
from US $8.79 |
||
|
6
|
6
40323-HN8-000 Band b |
40323-HN8-000 |
from US $7.33 |
||
|
7
|
7
40400-HL5-A00 SHAFT, FR. PROPELLER |
40400-HL5-A00 |
US $156.21 |
||
|
8
|
8
40402-HL5-A00 JOINT, FR. |
40402-HL5-A00 |
US $58.53 |
||
|
9
|
9
40410-HN8-000 Boot a, propeller |
40410-HN8-000 |
US $33.56 |
||
|
10
|
10
40415-HL1-A00 Spring, fr. shaft |
40415-HL1-A00 |
US $5.90 |
||
|
11
|
11
40420-HM7-A00 Boot b, propeller |
40420-HM7-A00 |
US $16.30 |
||
|
12
|
12
43251-HN8-B01 Disk, rr. brake |
43251-HN8-B01 |
US $130.44 |
||
|
13
|
13
90105-HN8-000 Bolt, disk (6x17) |
90105-HN8-000 |
from US $4.62 |
||
|
14
|
14
91301-HM7-A00 Band, boot (d32) |
91301-HM7-A00 |
from US $6.36 |
||
|
15
|
15
91302-HM7-003 Seal a, rubber |
91302-HM7-003 |
from US $5.48 |
||
|
16
|
16
91302-HM7-A00 Band, boot (d27) |
91302-HM7-A00 |
from US $6.35 |
||
|
17
|
17
91302-HN5-671 Seal, propeller |
91302-HN5-671 |
from US $4.44 |
||
|
18
|
18
91303-HM7-A00 Band, boot (d20) |
91303-HM7-A00 |
from US $6.35 |
||
|
19
|
19
91311-MB0-003 O-ring (18.5x2.4) |
91311-MB0-003 |
from US $2.52 |
||
|
20
|
20
91355-759-003 O-ring, 21.8x2.4 |
91355-759-003 |
from US $1.11 |
