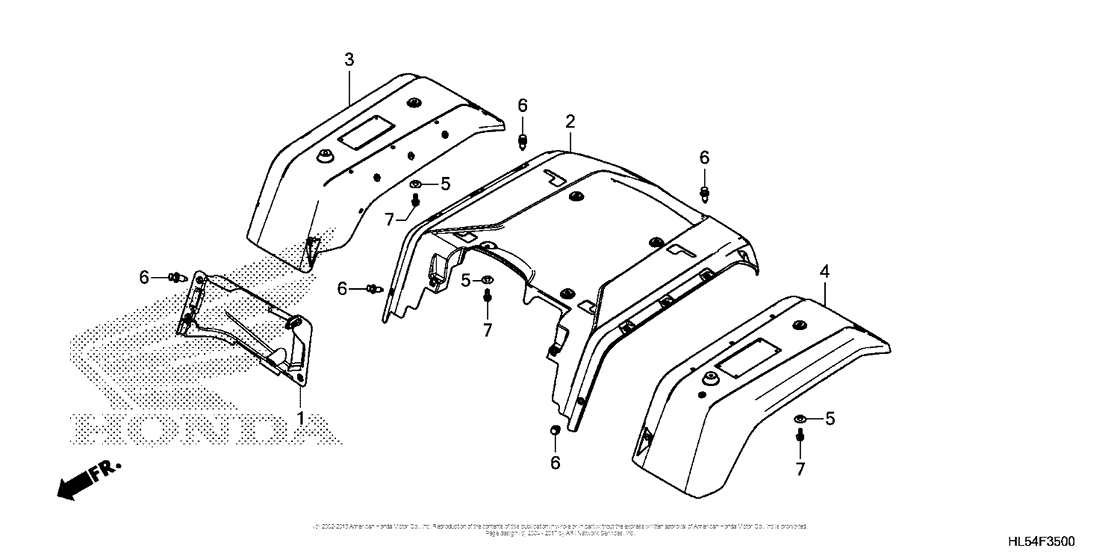

Rear Fender Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63510-HL5-A00 COVER, R. |
63510-HL5-A00 |
US $11.78 |
||
|
2
|
2
76500-HL5-A00ZA COVER, RR. *NH1* |
76500-HL5-A00ZA |
US $61.86 |
||
|
3
|
3
80110-HL5-A10ZA FDR, R. RR. (TYPE1) |
80110-HL5-A10ZA |
US $402.08 |
||
|
4
|
4
80210-HL5-A10ZA FDR, L. RR. (TYPE1) |
80210-HL5-A10ZA |
US $403.19 |
||
|
5
|
5
84706-GB0-900 Collar |
84706-GB0-900 |
from US $3.48 |
||
|
6
|
6
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $3.11 |
||
|
7
|
7
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
