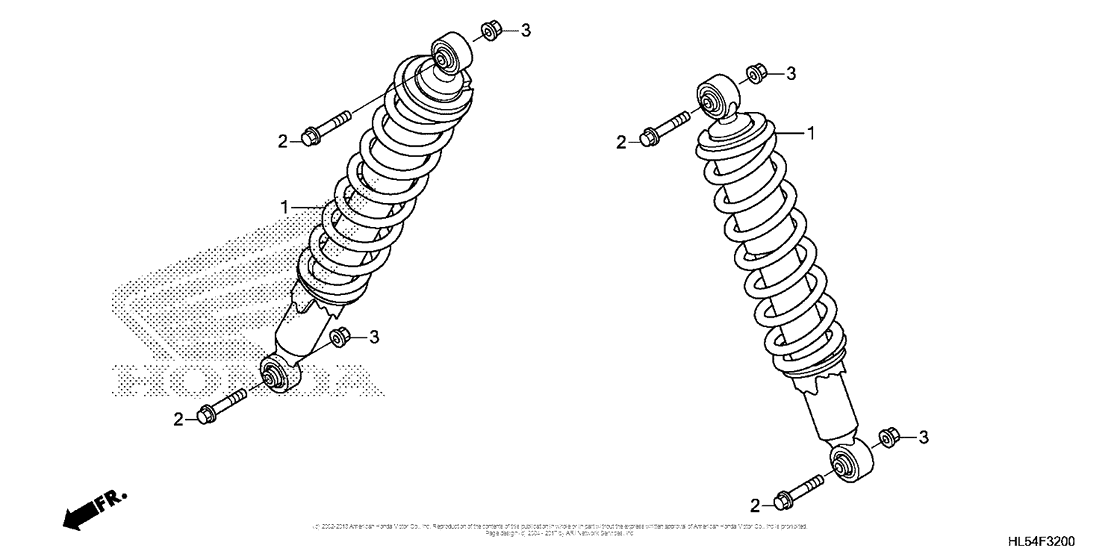

Rear Shock Absorber Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-HL5-A01 CUSHION ASSY., RR. |
52400-HL5-A01 |
US $165.78 |
||
|
2
|
2
90163-S73-000 Bolt flange 12x60 |
90163-S73-000 |
US $3.57 |
||
|
2
|
2
90173-SM4-000 BoltFLANGE, 12X60 |
90173-SM4-000 |
from US $4.07 |
||
|
3
|
3
90305-HC4-000 Nut, self-lock, 12mm |
90305-HC4-000 |
from US $2.96 |
