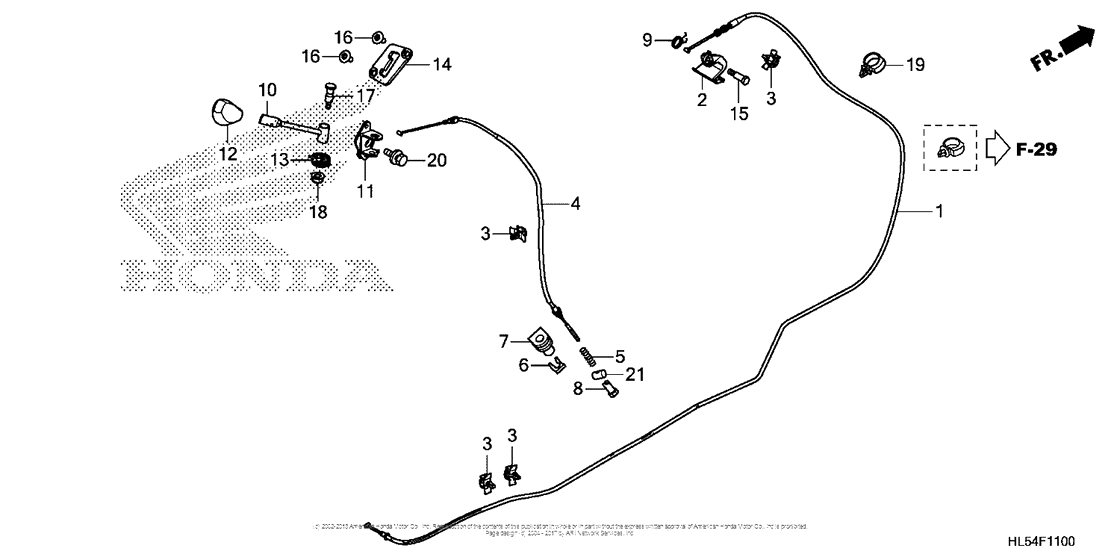

Shift Lever + Select Lever Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22880-HL5-A01 CABLE |
22880-HL5-A01 |
US $20.30 |
||
|
2
|
2
22881-HL5-A00 LEVER |
22881-HL5-A00 |
US $3.55 |
||
|
3
|
3
32171-GJ1-003 Clip, wire harness |
32171-GJ1-003 |
from US $2.22 |
||
|
4
|
4
41490-HL5-A00 CABLE, FINAL CLUTCH |
41490-HL5-A00 |
US $11.66 |
||
|
5
|
5
41491-HL1-A00 Spring, clutch cable |
41491-HL1-A00 |
US $1.73 |
||
|
6
|
6
41573-HP5-600 Clip, clutch cable |
41573-HP5-600 |
from US $3.26 |
||
|
7
|
7
41716-HP5-600 Grom, clutch cable |
41716-HP5-600 |
from US $3.48 |
||
|
8
|
8
43464-958-000 Nut,brake adj. |
43464-958-000 |
from US $7.24 |
||
|
9
|
9
53191-HN8-000 Spring |
53191-HN8-000 |
US $3.72 |
||
|
10
|
10
54010-HL5-A00 LEVER, MODE SELECT |
54010-HL5-A00 |
US $22.22 |
||
|
11
|
11
54021-HL5-A00 ARM, MODE SELECT |
54021-HL5-A00 |
US $17.54 |
||
|
12
|
12
54050-HL1-A00ZA Grip *nh1* |
54050-HL1-A00ZA |
from US $12.80 |
||
|
13
|
13
54324-HN7-000 Spring, select lever |
54324-HN7-000 |
US $6.61 |
||
|
14
|
14
54335-HL5-A00 GATE, SHIFT |
54335-HL5-A00 |
US $5.10 |
||
|
15
|
15
90114-166-006 Bolt |
90114-166-006 |
from US $2.66 |
||
|
16
|
16
90114-MAC-780 Bolt, fr. disk cover |
90114-MAC-780 |
from US $1.35 |
||
|
17
|
17
90115-MAL-600 Bolt, change pivot |
90115-MAL-600 |
from US $10.21 |
||
|
18
|
18
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
19
|
19
90652-HC4-003 ClampHARNESS |
90652-HC4-003 |
from US $2.03 |
||
|
20
|
20
93406-080-120-8 Bolt-washer, 8x12 |
93406-080-120-8 |
from US $0.67 |
||
|
21
|
21
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
