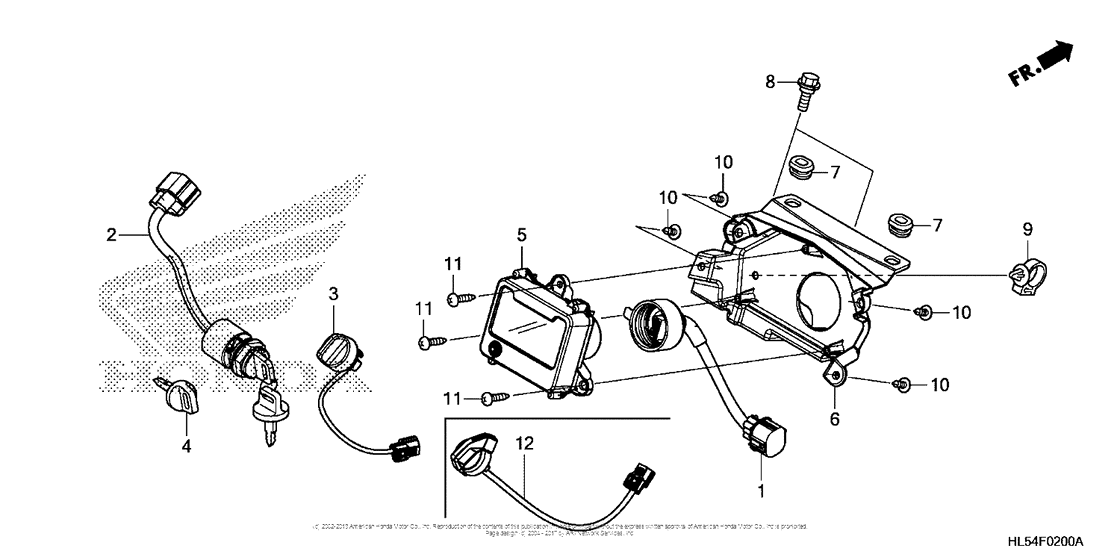

Switch + Meter Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32105-HL3-A00 Sub-harness, meter |
32105-HL3-A00 |
US $26.03 |
||
|
2
|
2
35100-HL5-A01 New Genuine Part |
35100-HL5-A01 |
from US $74.12 |
||
|
3
|
3
35120-HL5-A01 New Genuine Part |
35120-HL5-A01 |
from US $32.64 |
||
|
4
|
4
35121-HL1-A01 Key, blank (type1) |
35121-HL1-A01 |
from US $8.93 |
||
|
4
|
4
35122-HL1-A01 Key, blank (type2) |
35122-HL1-A01 |
from US $8.93 |
||
|
5
|
5
37200-HL5-A01 METER, COMBINATION |
37200-HL5-A01 |
US $245.38 |
||
|
6
|
6
68108-HL5-A00 COVER, METER |
68108-HL5-A00 |
US $11.68 |
||
|
7
|
7
83551-MA6-000 Grommet, side cover |
83551-MA6-000 |
from US $3.63 |
||
|
8
|
8
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
9
|
9
90652-HC4-003 ClampHARNESS |
90652-HC4-003 |
from US $2.03 |
||
|
10
|
10
93903-25310 ScrewTAPPING, 5X16 |
93903-25310 |
from US $0.37 |
||
|
11
|
11
93913-25480 ScrewTAPPING, 5X16 (PO) |
93913-25480 |
from US $0.37 |
