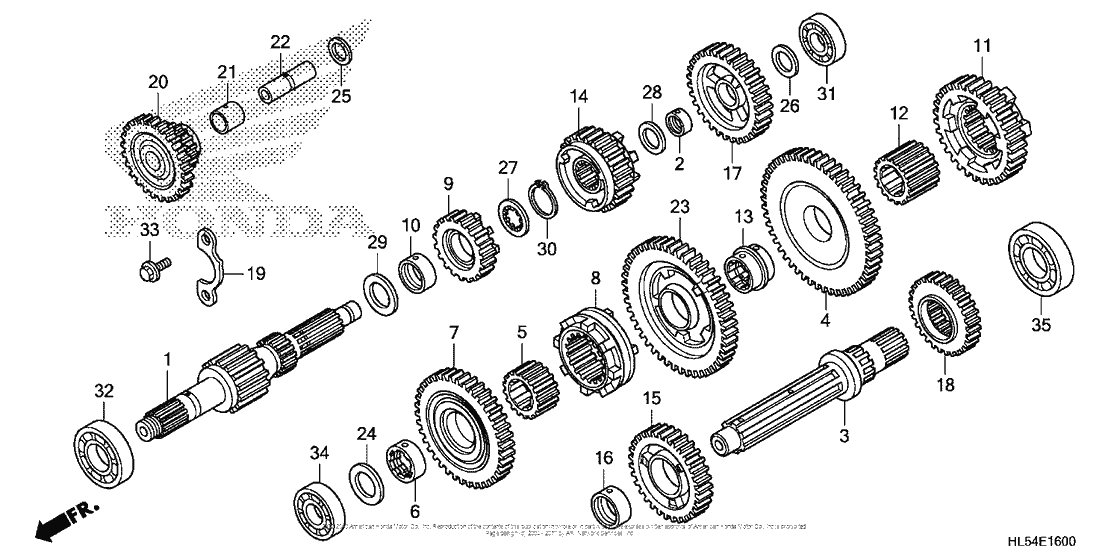

Transmission Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-HR0-F00 Mainshaft |
23211-HR0-F00 |
from US $147.85 |
||
|
2
|
2
23212-HP0-A00 Bush (17mm) |
23212-HP0-A00 |
from US $8.01 |
||
|
3
|
3
23221-HR0-F00 Countershaft |
23221-HR0-F00 |
from US $111.94 |
||
|
4
|
4
23411-HR0-F00 Gear (55t) |
23411-HR0-F00 |
from US $96.46 |
||
|
5
|
5
23413-HP5-600 Collar, spline |
23413-HP5-600 |
from US $21.90 |
||
|
6
|
6
23414-HA0-000 Bush, spline (25mm) |
23414-HA0-000 |
from US $14.55 |
||
|
7
|
7
23431-HR0-F00 Gear (43t) |
23431-HR0-F00 |
from US $90.12 |
||
|
8
|
8
23432-HR0-F00 Shifter |
23432-HR0-F00 |
US $52.73 |
||
|
9
|
9
23441-HR0-F00 Gear |
23441-HR0-F00 |
from US $76.04 |
||
|
10
|
10
23442-HP5-600 Bush (22x25x10.2) |
23442-HP5-600 |
from US $9.59 |
||
|
11
|
11
23451-HR0-F00 Gear (37t) |
23451-HR0-F00 |
from US $92.94 |
||
|
12
|
12
23452-HP5-600 Collar, spline |
23452-HP5-600 |
from US $25.64 |
||
|
13
|
13
23454-HR0-F00 Bush, spline |
23454-HR0-F00 |
from US $24.79 |
||
|
14
|
14
23461-HR0-F00 Gear (28t) |
23461-HR0-F00 |
from US $85.20 |
||
|
15
|
15
23471-HR0-F00 Gear (33t) |
23471-HR0-F00 |
from US $81.68 |
||
|
16
|
16
23472-HP5-600 Collar (25x28x12.5) |
23472-HP5-600 |
from US $10.49 |
||
|
17
|
17
23481-HR0-F00 Gear (33t) |
23481-HR0-F00 |
from US $81.68 |
||
|
18
|
18
23491-HP5-600 Gear (28t) |
23491-HP5-600 |
from US $28.17 |
||
|
19
|
19
23521-HR0-F00 Plate |
23521-HR0-F00 |
from US $7.55 |
||
|
20
|
20
23721-HL5-A00 New Genuine Part |
23721-HL5-A00 |
from US $41.21 |
||
|
21
|
21
23722-HL5-A00 New Genuine Part |
23722-HL5-A00 |
from US $13.17 |
||
|
22
|
22
23731-HB3-000 Shaft, reverse idle |
23731-HB3-000 |
US $28.29 |
||
|
23
|
23
23751-HR0-F00 Gear (48t) |
23751-HR0-F00 |
from US $90.12 |
||
|
24
|
24
90401-HP0-A00 Washer (20mm) |
90401-HP0-A00 |
US $6.94 |
||
|
25
|
25
90401-MGE-000 Washer (13mm) |
90401-MGE-000 |
US $1.97 |
||
|
26
|
26
90403-HN8-000 Washer (17mm) |
90403-HN8-000 |
US $4.17 |
||
|
27
|
27
90451-KY1-000 Washer (22mm) |
90451-KY1-000 |
from US $2.87 |
||
|
28
|
28
90452-GB4-770 Washer (17mm) |
90452-GB4-770 |
from US $2.74 |
||
|
29
|
29
90455-ML7-000 Washer b (22mm) |
90455-ML7-000 |
from US $3.27 |
||
|
30
|
30
90601-329-000 Circlip (22mm) |
90601-329-000 |
from US $3.18 |
||
|
31
|
31
91004-HC0-003 Bearing (6203) |
91004-HC0-003 |
from US $12.88 |
||
|
32
|
32
91002-PL0-018 Bearing (62/22) |
91002-PL0-018 |
from US $10.21 |
||
|
33
|
33
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.52 |
||
|
34
|
34
96100-6204000 Bearing, radial ball, 6204 |
96100-6204000 |
from US $6.66 |
||
|
35
|
35
96100-6305000 Bearing, radial ball, 6305 |
96100-6305000 |
from US $10.51 |
