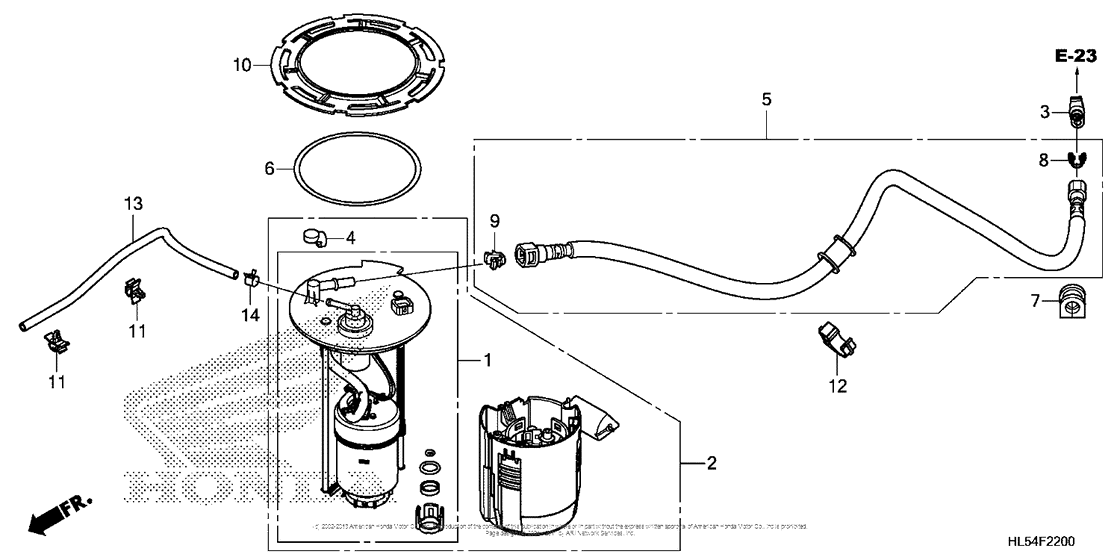

Fuel Pump Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 AC
- Engine Capacity
- 500
- Year
- 2017
- Sales region
- USA
- Frame
- 1HFVE030 - H4200001
- Model
- Pioneer 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-HL3-A01 Filter set, fuel |
16010-HL3-A01 |
US $84.27 |
||
|
2
|
2
16700-HL5-A01 Pump Assy., Fuel |
16700-HL5-A01 |
US $233.84 |
||
|
3
|
3
16718-HR0-F00 Damper, connector |
16718-HR0-F00 |
US $0.92 |
||
|
4
|
4
16719-HW1-670 Damper, connector |
16719-HW1-670 |
US $29.39 |
||
|
5
|
5
17570-HL5-A41 HOSE, FUEL FEED |
17570-HL5-A41 |
from US $118.98 |
||
|
6
|
6
17574-HR3-A21 Gasket, fuel pump |
17574-HR3-A21 |
from US $7.33 |
||
|
7
|
7
17579-HP5-600 Rub, fuel feed hose |
17579-HP5-600 |
from US $2.07 |
||
|
8
|
8
17711-S0X-003 RetainerORANGE) (TOKAI |
17711-S0X-003 |
from US $3.58 |
||
|
9
|
9
17711-S0X-A31 RetainerGREEN)(TOKAI |
17711-S0X-A31 |
from US $3.40 |
||
|
10
|
10
17719-HR3-A21 Locking ring |
17719-HR3-A21 |
from US $14.03 |
||
|
11
|
11
32171-GJ1-003 Clip, wire harness |
32171-GJ1-003 |
from US $2.22 |
||
|
12
|
12
90652-HC4-003 ClampHARNESS |
90652-HC4-003 |
from US $2.03 |
||
|
13
|
13
17575-HL5-A40 TUBE |
17575-HL5-A40 |
US $4.44 |
||
|
14
|
14
95002-410-000-8 ClampTUBE (D10) |
95002-410-000-8 |
from US $0.74 |
