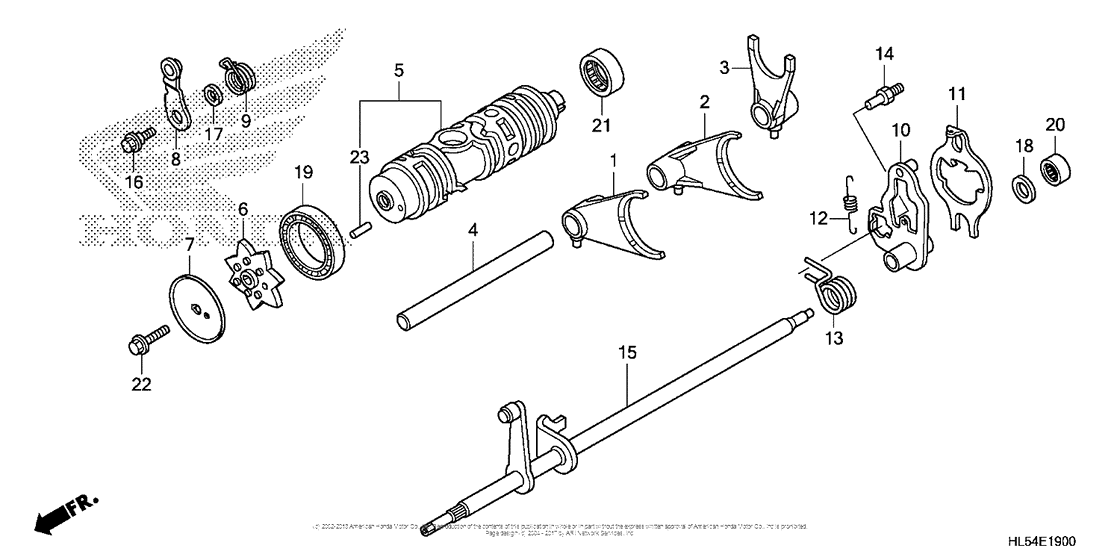

Gearshift Fork Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 AC
- Engine Capacity
- 500
- Year
- 2017
- Sales region
- USA
- Frame
- 1HFVE030 - H4200001
- Model
- Pioneer 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-HP5-A50 Fork, fr. gearshift |
24211-HP5-A50 |
from US $14.77 |
||
|
2
|
2
24212-HR0-F00 Fork |
24212-HR0-F00 |
from US $54.13 |
||
|
3
|
3
24213-HL5-A40 SWINGARM, GEARSHIFT |
24213-HL5-A40 |
US $18.36 |
||
|
4
|
4
24241-HP0-A51 Shaft |
24241-HP0-A51 |
from US $13.87 |
||
|
5
|
5
24310-HP5-A50 Drum, gearshift |
24310-HP5-A50 |
from US $55.71 |
||
|
6
|
6
24321-HM8-B40 Shifter, drum |
24321-HM8-B40 |
from US $23.26 |
||
|
7
|
7
24328-HB3-000 Plate, shift guide |
24328-HB3-000 |
from US $5.77 |
||
|
8
|
8
24430-HP5-600 Stopper |
24430-HP5-600 |
from US $9.32 |
||
|
9
|
9
24435-HP5-600 Spring |
24435-HP5-600 |
US $5.37 |
||
|
10
|
10
24620-HR0-E00 Arm |
24620-HR0-E00 |
from US $14.50 |
||
|
11
|
11
24631-HM7-010 Plate, gearshift |
24631-HM7-010 |
from US $8.29 |
||
|
12
|
12
24641-HB3-004 Spring, shift arm |
24641-HB3-004 |
from US $2.52 |
||
|
13
|
13
24651-HN0-A10 Spring |
24651-HN0-A10 |
US $6.53 |
||
|
14
|
14
24652-KY4-900 Pin, return spring |
24652-KY4-900 |
from US $5.18 |
||
|
15
|
15
24680-HR0-F00 Spindle, gearshift |
24680-HR0-F00 |
from US $102.68 |
||
|
16
|
16
90023-MR5-670 Bolt |
90023-MR5-670 |
from US $2.66 |
||
|
17
|
17
90417-360-000 Washer, drum stopper |
90417-360-000 |
from US $2.22 |
||
|
18
|
18
90451-GF6-000 Washer, thrust, 12mm |
90451-GF6-000 |
from US $2.15 |
||
|
19
|
19
91010-HB7-003 Bearing (6807) |
91010-HB7-003 |
from US $20.13 |
||
|
20
|
20
91053-MFJ-D01 Bearing (12x16x10) |
91053-MFJ-D01 |
from US $3.92 |
||
|
21
|
21
91106-HN0-671 Bearing (20x26x12) |
91106-HN0-671 |
US $16.17 |
||
|
22
|
22
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
23
|
23
9622040138 Roller (4x13.8) |
9622040138 |
from US $0.22 |
