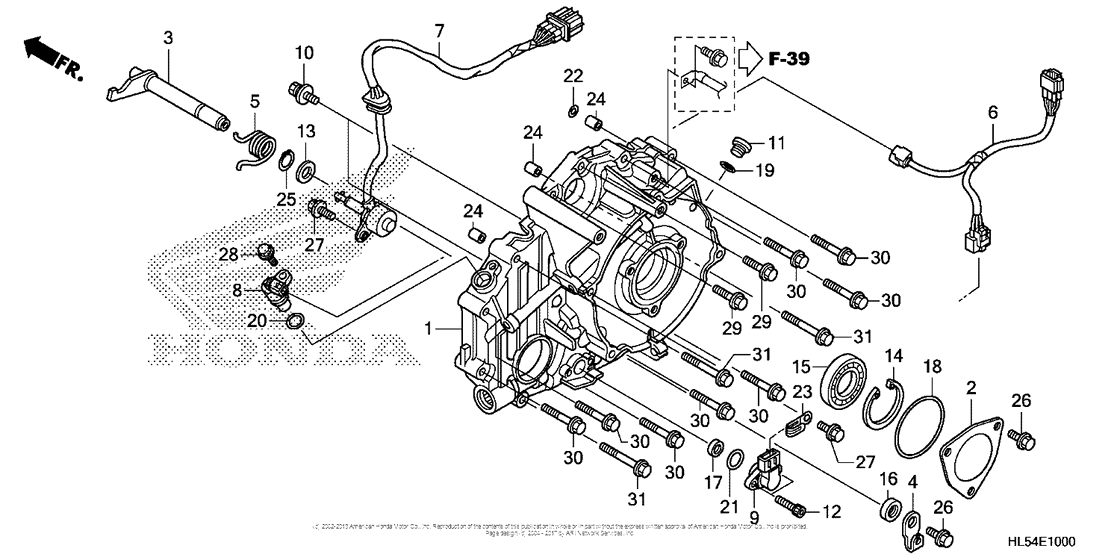

Rear Crankcase Cover Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 AC
- Engine Capacity
- 500
- Year
- 2017
- Sales region
- USA
- Frame
- 1HFVE030 - H4200001
- Model
- Pioneer 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11340-HL5-A40 COVER, RR. CRANKCASE |
11340-HL5-A40 |
US $225.66 |
||
|
2
|
2
11342-HP5-600 Cap, rr. cover |
11342-HP5-600 |
from US $3.40 |
||
|
3
|
3
24860-HP5-000 Shaft a |
24860-HP5-000 |
US $25.35 |
||
|
4
|
4
24865-HP5-600 Lever |
24865-HP5-600 |
from US $3.92 |
||
|
5
|
5
24867-HP5-600 Spring |
24867-HP5-600 |
US $5.98 |
||
|
6
|
6
32101-HL5-A00 SUB-HARNESS, ENGINE |
32101-HL5-A00 |
US $17.24 |
||
|
7
|
7
35759-HL5-A01 SWITCH ASSY., CHANGE |
35759-HL5-A01 |
US $43.96 |
||
|
8
|
8
37700-HP5-601 Sensor assy., speed |
37700-HP5-601 |
from US $40.15 |
||
| replacement | |||||
|
8
|
8
37700-KZR-601 Sensor assy., speed |
37700-KZR-601 |
from US $54.40 |
||
|
9
|
9
38800-HR3-A21 Sensor assy., angle |
38800-HR3-A21 |
from US $33.49 |
||
|
10
|
10
90021-MM5-000 Bolt-washer (6x12) |
90021-MM5-000 |
from US $3.70 |
||
|
11
|
11
90084-KY2-000 Cap (14mm) |
90084-KY2-000 |
from US $7.70 |
||
|
12
|
12
90116-HP5-600 Bolt, socket (5x20) |
90116-HP5-600 |
from US $3.32 |
||
|
13
|
13
90452-166-600 Washer, thrust, 12mm |
90452-166-600 |
from US $2.44 |
||
|
14
|
14
90602-GFZ-000 Circlip (42mm) |
90602-GFZ-000 |
from US $3.85 |
||
|
15
|
15
91015-HR0-F21 Bearing (6806) |
91015-HR0-F21 |
from US $14.92 |
||
|
16
|
16
91201-965-000 Oil seal (12x22x5) |
91201-965-000 |
from US $2.90 |
||
|
17
|
17
91254-792-003 Oil seal, 8x16x6 |
91254-792-003 |
from US $2.59 |
||
|
18
|
18
91301-HR3-A40 O-ring (58x3) |
91301-HR3-A40 |
from US $2.86 |
||
|
19
|
19
91303-377-000 O-ring, 13.8x2.5 |
91303-377-000 |
from US $5.49 |
||
|
20
|
20
91303-KF0-003 O-ring, 14.8x2.4 (arai) |
91303-KF0-003 |
from US $2.70 |
||
| replacement | |||||
|
20
|
20
91356-MA6-005 O-ring (14.8x2.4) |
91356-MA6-005 |
from US $2.74 |
||
|
21
|
21
91308-HN0-A10 O-ring, angle sensor |
91308-HN0-A10 |
from US $2.31 |
||
|
22
|
22
91313-MN5-004 O-ring (7.8x1.9) |
91313-MN5-004 |
from US $2.37 |
||
| replacement | |||||
|
22
|
22
91301-MJ0-003 O-ring, 7.8x1.9 (arai) |
91301-MJ0-003 |
from US $1.48 |
||
|
23
|
23
91413-679-000 Clip2X70 |
91413-679-000 |
from US $3.58 |
||
|
24
|
24
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
25
|
25
94510-12000 CirclipEXTERNAL, 12MM |
94510-12000 |
from US $0.44 |
||
|
26
|
26
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
27
|
27
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.52 |
||
|
28
|
28
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
29
|
29
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
30
|
30
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
31
|
31
95701-060-500-0 BoltFLANGE, 6X50 |
95701-060-500-0 |
from US $0.78 |
||
