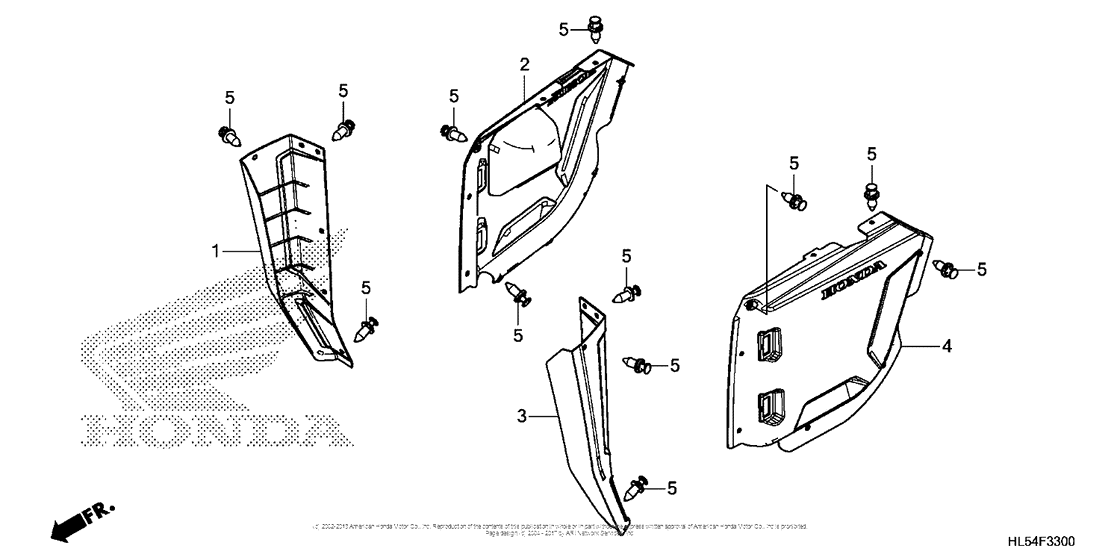

Side Cover Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 AC
- Engine Capacity
- 500
- Year
- 2017
- Sales region
- USA
- Frame
- 1HFVE030 - H4200001
- Model
- Pioneer 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83500-HL5-A00ZA CVR, R. FR. SI *NH1* |
83500-HL5-A00ZA |
US $105.23 |
||
|
2
|
2
83550-HL5-A00ZA CVR, R. RR. SI *NH1* |
83550-HL5-A00ZA |
US $21.15 |
||
|
3
|
3
83600-HL5-A00ZA CVR, L. FR. SI *NH1* |
83600-HL5-A00ZA |
US $104.81 |
||
|
4
|
4
83650-HL5-A00ZA CVR, L. RR. SI *NH1* |
83650-HL5-A00ZA |
US $17.14 |
||
|
5
|
5
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $3.11 |
