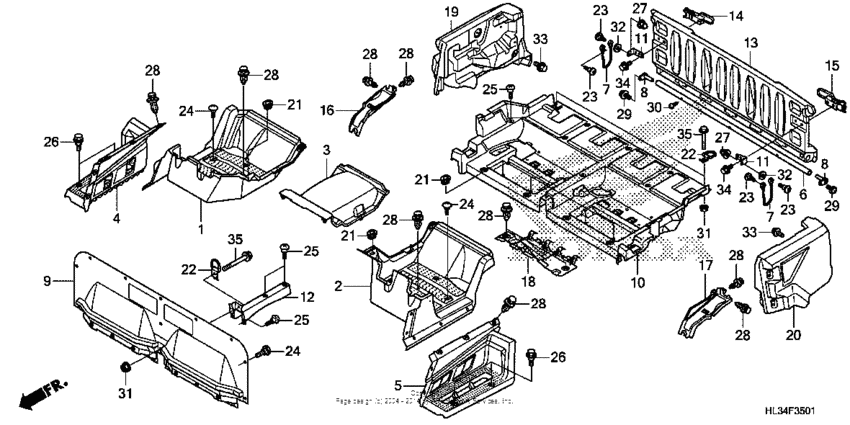

Bed plate + rear gate (2) Diagram Honda SXS 700 Pioneer-4 700
- Model code
- SXS700M4 AC
- Engine Capacity
- 675
- Year
- 2014
- Sales region
- USA
- Frame
- 1HFVE020*E4000001 -
- Power
- 36,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Pioneer-4 700
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
76300-HL3-A00ZA Foot well, r. *nh1* |
76300-HL3-A00ZA |
US $29.22 |
||
2
|
2
76400-HL3-A00ZA Foot well, l. *nh1* |
76400-HL3-A00ZA |
US $36.72 |
||
3
|
3
76500-HL3-A00ZA Cover, rr. *nh1* |
76500-HL3-A00ZA |
US $18.65 |
||
4
|
4
80121-HL3-A00ZA Sph guard, r. *nh1* |
80121-HL3-A00ZA |
US $11.48 |
||
5
|
5
80122-HL3-A00ZA Sph guard, l. *nh1* |
80122-HL3-A00ZA |
US $11.48 |
||
6
|
6
81503-HL3-A00 Hinge, rr. gate |
81503-HL3-A00 |
US $31.69 |
||
7
|
7
81504-HL3-A00 Wire, rr. |
81504-HL3-A00 |
US $22.47 |
||
8
|
8
81505-HL1-A00 Brkt, rr. gate hinge |
81505-HL1-A00 |
US $6.73 |
||
9
|
9
81506-HL3-A00 Plate, fr. bed |
81506-HL3-A00 |
US $59.67 |
||
10
|
10
81507-HL3-A00 Plate, rr. top bed |
81507-HL3-A00 |
US $65.14 |
||
11
|
11
81508-HL1-A00 Brkt, rr. gate lock |
81508-HL1-A00 |
US $2.92 |
||
12
|
12
81509-HL3-A00 Plate, fr |
81509-HL3-A00 |
US $7.28 |
||
13
|
13
81530-HL3-A00ZA Gate, rr. *nh1* |
81530-HL3-A00ZA |
US $92.60 |
||
14
|
14
81531-HL3-A00 Lock, r. rr. gate |
81531-HL3-A00 |
US $15.03 |
||
15
|
15
81532-HL3-A00 Lock, l. rr. gate |
81532-HL3-A00 |
US $15.03 |
||
16
|
16
81533-HL3-A00 Guard, r. rr. step |
81533-HL3-A00 |
US $2.84 |
||
17
|
17
81534-HL3-A00 Guard, l. rr. step |
81534-HL3-A00 |
US $2.84 |
||
18
|
18
81545-HL3-A00 Protr, rr. muffler |
81545-HL3-A00 |
US $8.47 |
||
19
|
19
81550-HL3-A00ZA Cover, r. *nh1* |
81550-HL3-A00ZA |
US $92.60 |
||
20
|
20
81560-HL3-A00ZA Cover, l. *nh1* |
81560-HL3-A00ZA |
US $92.60 |
||
21
|
21
83551-MA6-000 Grommet, side cover |
83551-MA6-000 |
from US $2.21 |
||
22
|
22
84614-S06-000 Hook assyTIE DOWN |
84614-S06-000 |
from US $6.16 |
||
23
|
23
90102-HN5-670 Screw, special (6x8) |
90102-HN5-670 |
from US $1.41 |
||
24
|
24
90103-HC4-770 Screw, mudguard |
90103-HC4-770 |
from US $2.15 |
||
25
|
25
90103-HF1-670 Screw, special, 6mm |
90103-HF1-670 |
from US $3.18 |
||
26
|
26
90111-HP0-A00 Bolt, flange (6mm) |
90111-HP0-A00 |
from US $3.26 |
||
27
|
27
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $1.87 |
||
28
|
28
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $0.77 |
||
29
|
29
93891-060-120-0 Screw-washer6X12 |
93891-060-120-0 |
from US $0.52 |
||
30
|
30
93903-25310 ScrewTAPPING, 5X16 |
93903-25310 |
from US $0.37 |
||
31
|
31
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
32
|
32
94103-06700 WasherPLAIN, 6MM |
94103-06700 |
from US $0.37 |
||
33
|
33
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.56 |
||
34
|
34
93404-060-200-7 Bolt-washer6X20 |
93404-060-200-7 |
from US $0.52 |
||
34
|
34
95701-060-180-7 BoltFLANGE, 6X18 |
95701-060-180-7 |
from US $0.52 |
||
35
|
35
95701-0605507 Bolt, flange (6x55) |
95701-0605507 |
from US $0.78 |
