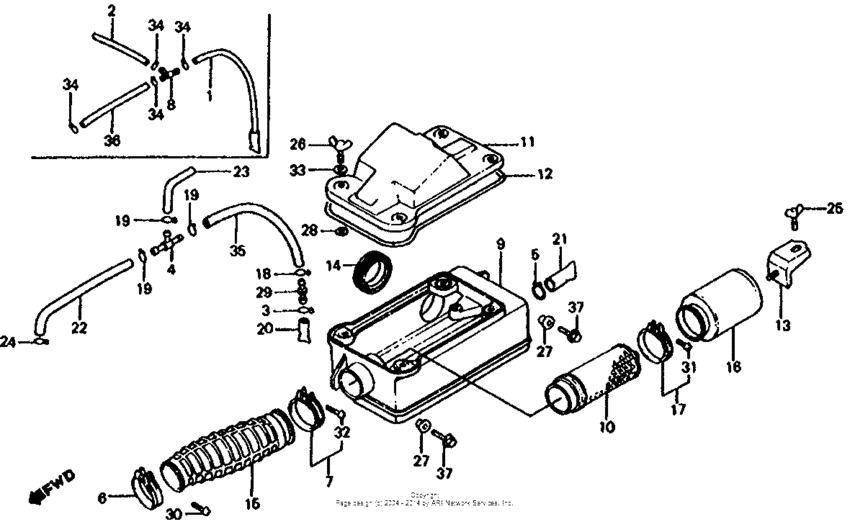

Air cleaner Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15720-VM6-000
Tube, drain
|
15720-VM6-000 |
— | ||
|
2
|
2
15721-968-000
Tube, breather
|
15721-968-000 |
— | ||
|
5
|
5
15772-500-010 Clip, breather tube |
15772-500-010 |
from US $4.44 |
||
|
6
|
6
16223-317-000
Band, insulator
|
16223-317-000 |
— | ||
|
7
|
7
16219-ME9-000 Band, insulator |
16219-ME9-000 |
from US $7.31 |
||
|
8
|
8
16235-657-000 Joint, fuel |
16235-657-000 |
US $13.94 |
||
|
9
|
9
17210-943-000
Housing, air cleaner
|
17210-943-000 |
— | ||
|
10
|
10
17211-958-033
Body, air cleaner
|
17211-958-033 |
— | ||
|
11
|
11
17217-943-000
Lid, a/clnr hsg
|
17217-943-000 |
— | ||
|
12
|
12
17219-943-000
Seal
|
17219-943-000 |
— | ||
|
13
|
13
17221-943-000
Stay, a/clnr elem
|
17221-943-000 |
— | ||
|
14
|
14
17251-VM6-000
Seal
|
17251-VM6-000 |
— | ||
|
15
|
15
17253-VM6-000
Tube
|
17253-VM6-000 |
— | ||
|
16
|
16
17254-958-013 Element, air cleaner |
17254-958-013 |
from US $26.89 |
||
|
17
|
17
9501856200 Band (56) |
9501856200 |
from US $3.42 |
||
|
21
|
21
17358-943-000
Tube, drain
|
17358-943-000 |
— | ||
|
25
|
25
90105-958-405
Bolt, wing
|
90105-958-405 |
— | ||
|
26
|
26
90143-958-000 Bolt |
90143-958-000 |
US $4.86 |
||
|
27
|
27
90522-170-700 Collar, gearshift lever setting |
90522-170-700 |
from US $1.57 |
||
|
28
|
28
90651-719-000 E-ring, 5mm |
90651-719-000 |
US $2.53 |
||
|
30
|
30
93500-040-160-H ScrewPAN, 4X16 |
93500-040-160-H |
from US $0.37 |
||
|
31
|
31
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
32
|
32
93500-050-200-G ScrewPAN, 5X20 |
93500-050-200-G |
from US $0.37 |
||
|
33
|
33
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
34
|
34
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
36
|
36
95005-550-0320M Bulk hose (5.5mm x 3000mm)Length 3000mm |
95005-550-0320M |
from US $24.48 |
||
|
37
|
37
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
