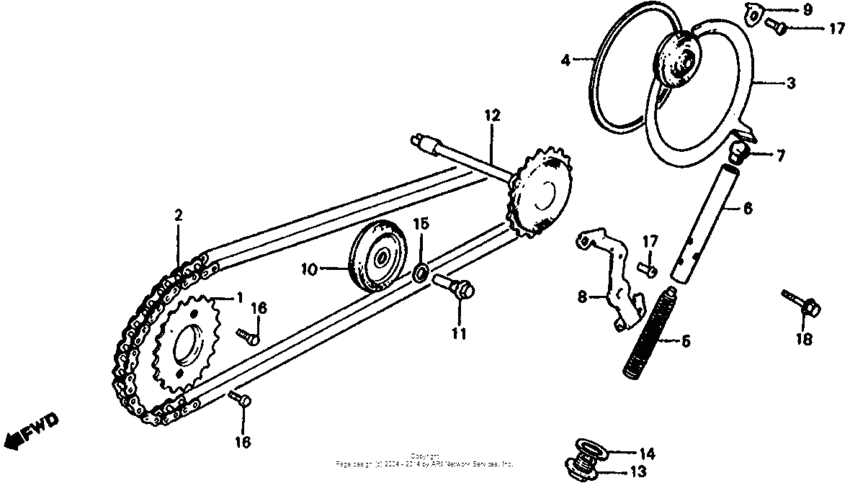

Cam chain + tensioner Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14321-028-000 Sprocket, cam (30t) |
14321-028-000 |
US $29.78 |
||
|
2
|
2
14401-968-003
Chain, cam (25h-94)
|
14401-968-003 |
— | ||
|
3
|
3
14500-096-020
Tensioner, cam chain
|
14500-096-020 |
— | ||
|
4
|
4
14502-VM6-000
Washer (80mm)
|
14502-VM6-000 |
— | ||
|
5
|
5
14541-GB4-681 Spring |
14541-GB4-681 |
from US $3.85 |
||
|
6
|
6
14550-GB0-911 Rod |
14550-GB0-911 |
from US $16.59 |
||
|
7
|
7
14566-086-030 HEAD, CAM CHAIN TENSIONER PUSH ROD |
14566-086-030 |
from US $2.37 |
||
|
8
|
8
14592-968-000
Plate
|
14592-968-000 |
— | ||
|
9
|
9
14593-028-010 Plate b |
14593-028-010 |
from US $1.58 |
||
|
10
|
10
14610-105-691 Roller |
14610-105-691 |
US $12.14 |
||
|
11
|
11
14615-035-000 Pin |
14615-035-000 |
from US $2.43 |
||
| replacement | |||||
|
11
|
11
14615-035-010 Pin |
14615-035-010 |
from US $3.11 |
||
|
11
|
11
14615-035-010 Pin |
14615-035-010 |
from US $3.11 |
||
|
12
|
12
14670-968-000
Sprocket
|
14670-968-000 |
— | ||
|
13
|
13
90081-035-000 Bolt, sealing (14mm) |
90081-035-000 |
from US $4.74 |
||
|
14
|
14
90441-035-000 Washer, sealing, 14mm |
90441-035-000 |
from US $2.59 |
||
|
15
|
15
90481-035-000 Washer, 8mm |
90481-035-000 |
from US $1.92 |
||
|
16
|
16
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
17
|
17
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
18
|
18
95701-0601800 Bolt, flange, 6x18 |
95701-0601800 |
from US $0.52 |
||
