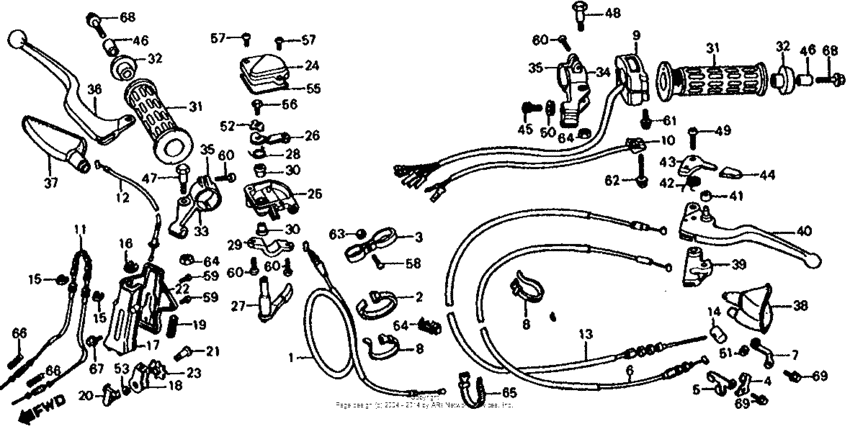

Control levers + switches + cables 85 Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-VM6-000
Cable comp,throt.
|
17910-VM6-000 |
— | ||
|
2
|
2
17914-958-010
Band, throttle cable
|
17914-958-010 |
— | ||
|
3
|
3
17916-958-000
Guide
|
17916-958-000 |
— | ||
|
4
|
4
22835-VM6-000
Stay,wire
|
22835-VM6-000 |
— | ||
|
5
|
5
22836-VM6-000
Clip cord
|
22836-VM6-000 |
— | ||
|
6
|
6
22880-VM6-000
Cable,rvs.assist.
|
22880-VM6-000 |
— | ||
|
7
|
7
24865-VM6-000
Lever rvs.stopper
|
24865-VM6-000 |
— | ||
|
8
|
8
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
9
|
9
35200-VM6-000
Switch assy
|
35200-VM6-000 |
— | ||
|
10
|
10
35250-958-681
Switch, starting
|
35250-958-681 |
— | ||
|
11
|
11
43440-VM6-000
Cable 2nd fr brk
|
43440-VM6-000 |
— | ||
|
12
|
12
43450-VM6-000
Cable,ist fr brk
|
43450-VM6-000 |
— | ||
|
13
|
13
43460-VM6-680
Cable comp.,brake
|
43460-VM6-680 |
— | ||
|
14
|
14
43473-918-000
Joint, brake cable
|
43473-918-000 |
— | ||
|
15
|
15
47512-196-000 Grommet,cable |
47512-196-000 |
US $2.29 |
||
|
16
|
16
47520-GAG-750 Grommet, rr. brake first cable |
47520-GAG-750 |
US $2.22 |
||
|
17
|
17
47601-196-000 Box, equalizer |
47601-196-000 |
US $23.26 |
||
|
18
|
18
47604-196-000 Plate, equalizer |
47604-196-000 |
US $4.88 |
||
|
19
|
19
47605-VM6-000
Spring, cable return
|
47605-VM6-000 |
— | ||
|
20
|
20
47606-196-000 Pin, equalizer guide |
47606-196-000 |
US $3.70 |
||
|
21
|
21
47607-196-000 Pin, equalizer |
47607-196-000 |
US $4.88 |
||
|
22
|
22
47609-VM6-000
Cover, equalizer box
|
47609-VM6-000 |
— | ||
|
23
|
23
47610-196-003 Sprocket comp., equalizer (10t) (nippon cable system) |
47610-196-003 |
from US $10.66 |
||
|
24
|
24
53141-965-000
Cover,throt case
|
53141-965-000 |
— | ||
|
25
|
25
53142-965-020
Case,throt lever
|
53142-965-020 |
— | ||
|
26
|
26
53144-965-000
Arm comp.,throt
|
53144-965-000 |
— | ||
|
27
|
27
53145-965-003 Lever,throt |
53145-965-003 |
US $17.87 |
||
|
28
|
28
53146-965-000
Spg,throt return
|
53146-965-000 |
— | ||
|
29
|
29
53147-965-000
Holder
|
53147-965-000 |
— | ||
|
30
|
30
53148-965-003
Bush,throt pivot
|
53148-965-003 |
— | ||
|
31
|
31
53166-943-000
Grip, handlebar
|
53166-943-000 |
— | ||
|
32
|
32
53167-958-680 Guard, handlebar end |
53167-958-680 |
from US $2.95 |
||
|
33
|
33
53171-VM6-000
Brkt,r hndl lever
|
53171-VM6-000 |
— | ||
|
34
|
34
53172-VM6-000
Brkt,brake lever
|
53172-VM6-000 |
— | ||
|
35
|
35
53173-958-000 Holder |
53173-958-000 |
from US $10.21 |
||
|
36
|
36
53175-VM6-000
Lever, r. handlebar
|
53175-VM6-000 |
— | ||
|
37
|
37
53176-VM6-000
Cvr, r. handle lever
|
53176-VM6-000 |
— | ||
|
38
|
38
53177-VM6-000
Cover,l.hndl lev.
|
53177-VM6-000 |
— | ||
|
39
|
39
53179-VM6-000
Arm, reverse assist
|
53179-VM6-000 |
— | ||
|
40
|
40
53180-VM6-405
Lever comp,rr brk
|
53180-VM6-405 |
— | ||
|
41
|
41
53187-VM6-000 Cap, reverse pin |
53187-VM6-000 |
from US $3.18 |
||
|
42
|
42
53191-961-010 Spring |
53191-961-010 |
from US $2.89 |
||
|
43
|
43
53192-HA0-770
Lever, parking lock
|
53192-HA0-770 |
— | ||
|
44
|
44
53193-HA0-770 Cap, parking lever |
53193-HA0-770 |
from US $2.95 |
||
|
45
|
45
53193-968-000 Bolt, wire adjusting |
53193-968-000 |
from US $9.24 |
||
|
46
|
46
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.37 |
||
|
47
|
47
90113-VM6-000
Bolt
|
90113-VM6-000 |
— | ||
|
48
|
48
90114-HA0-770 Bolt |
90114-HA0-770 |
from US $2.24 |
||
|
49
|
49
90115-961-000 Screw |
90115-961-000 |
from US $2.37 |
||
|
50
|
50
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
51
|
51
90414-GE0-000 Washer, 10x24 |
90414-GE0-000 |
from US $2.74 |
||
|
52
|
52
90501-965-000
Washer,lock,5mm
|
90501-965-000 |
— | ||
|
53
|
53
90605-166-720 Circlip, 7mm |
90605-166-720 |
from US $1.22 |
||
|
54
|
54
90686-VM6-003
Clip, cord
|
90686-VM6-003 |
— | ||
|
55
|
55
91351-965-000
O-ring,case throt
|
91351-965-000 |
— | ||
|
56
|
56
92101-05012-0G Bolt, hex. (5x12) |
92101-05012-0G |
from US $0.37 |
||
|
57
|
57
93500-040100G Screw, pan, 4x10 |
93500-040100G |
from US $0.37 |
||
|
58
|
58
93500-040200A Screw, pan, 4x20 |
93500-040200A |
from US $0.32 |
||
|
59
|
59
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
60
|
60
93500-050180A Screw, pan, 5x18 |
93500-050180A |
from US $0.38 |
||
|
61
|
61
93892-0502007 Screw-washer (5x20) |
93892-0502007 |
from US $0.44 |
||
|
62
|
62
93892-0504007 Screw-washer (5x40) |
93892-0504007 |
US $0.52 |
||
|
63
|
63
94001-040-000-S NutHEX., 4MM |
94001-040-000-S |
from US $0.37 |
||
|
64
|
64
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
65
|
65
9501462100 Band b1, wire |
9501462100 |
from US $1.18 |
||
|
66
|
66
95014-73200 Spring.b,brakerod |
95014-73200 |
US $0.74 |
||
|
67
|
67
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.52 |
||
|
68
|
68
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
||
|
69
|
69
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
