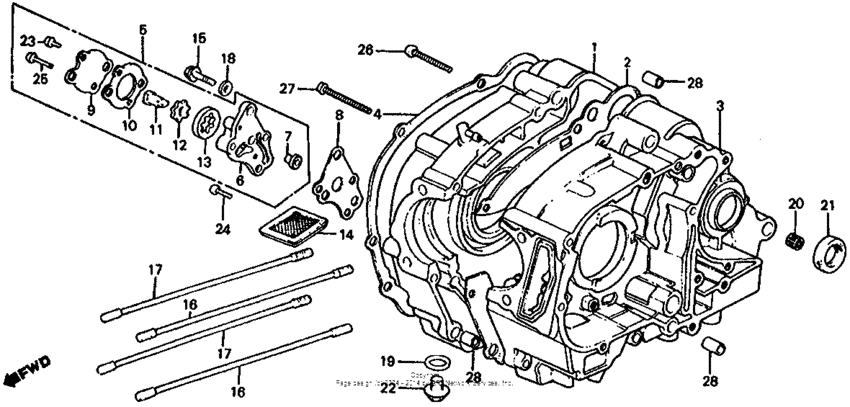

Crankcase + oil pump Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-VM6-000
Crankcase, r.
|
11100-VM6-000 |
— | ||
|
2
|
2
11191-968-306
Gasket, crankcase
|
11191-968-306 |
— | ||
|
3
|
3
11200-VM6-000
Crankcase, l.
|
11200-VM6-000 |
— | ||
|
4
|
4
11393-121-631 Gasket, r |
11393-121-631 |
from US $12.90 |
||
|
5
|
5
15100-968-010
Pump assy., oil
|
15100-968-010 |
— | ||
|
6
|
6
15111-968-000
Body, oil pump
|
15111-968-000 |
— | ||
|
7
|
7
15113-968-310
Knock, oil pump
|
15113-968-310 |
— | ||
|
8
|
8
15119-028-306
Gasket
|
15119-028-306 |
— | ||
|
9
|
9
15121-028-060 Cover, oil pump |
15121-028-060 |
US $4.24 |
||
|
10
|
10
15128-028-030 Gasket |
15128-028-030 |
US $1.92 |
||
|
11
|
11
15181-943-000 Driveshaft, oil pump |
15181-943-000 |
US $9.09 |
||
|
12
|
12
15331-968-000
Rotor, oil pump
|
15331-968-000 |
— | ||
|
13
|
13
15332-968-000
Rotor, oil pump
|
15332-968-000 |
— | ||
|
14
|
14
15421-035-010 Screen, oil filter |
15421-035-010 |
from US $4.82 |
||
|
15
|
15
90015-028-000
Bolt, oil joint
|
90015-028-000 |
— | ||
|
16
|
16
90031-427-010
Bolt a, cyl stud
|
90031-427-010 |
— | ||
|
17
|
17
90032-107-010 Bolt b, cyl stud |
90032-107-010 |
US $7.55 |
||
|
18
|
18
90405-VM6-000
Washer
|
90405-VM6-000 |
— | ||
|
19
|
19
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
19
|
19
90407-259-000 Gasket (12.5x20) |
90407-259-000 |
from US $1.41 |
||
|
20
|
20
91024-GJ5-003 Bearing (12x16x10) |
91024-GJ5-003 |
from US $5.92 |
||
|
21
|
21
91205-943-003 Oil seal (27x37x7) |
91205-943-003 |
from US $8.74 |
||
|
22
|
22
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
23
|
23
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
24
|
24
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
25
|
25
93500-060-250-A ScrewPAN, 6X25 |
93500-060-250-A |
from US $0.52 |
||
|
26
|
26
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
27
|
27
93500-060450A Screw, pan, 6x45 |
93500-060450A |
from US $0.59 |
||
|
28
|
28
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
