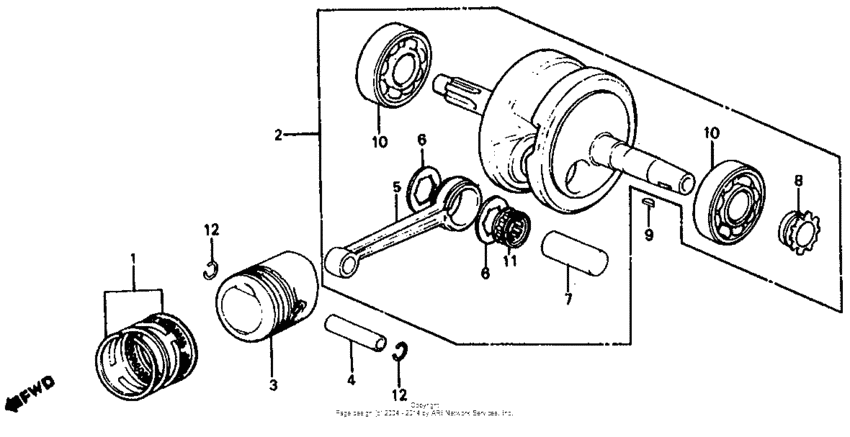

Crankshaft + piston Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
130A1-968-003
Ring set (std)
|
130A1-968-003 |
— | ||
|
1
|
1
130A1-968-004
Ring set (std)
|
130A1-968-004 |
— | ||
|
1
|
1
13012-968-003
Ring set (os 0.25)
|
13012-968-003 |
— | ||
|
1
|
1
13013-968-003
Ring set (os 0.50)
|
13013-968-003 |
— | ||
|
2
|
2
13000-968-010
Crankshaft
|
13000-968-010 |
— | ||
|
3
|
3
13101-968-003
Piston
|
13101-968-003 |
— | ||
|
3
|
3
13102-968-000
Piston (os 0.25)
|
13102-968-000 |
— | ||
|
3
|
3
13103-968-000
Piston (os 0.50)
|
13103-968-000 |
— | ||
|
4
|
4
13111-MJ6-000 Pin, piston |
13111-MJ6-000 |
US $15.64 |
||
|
5
|
5
13201-943-320
Rod, connecting
|
13201-943-320 |
— | ||
|
6
|
6
13202-958-300 Plate |
13202-958-300 |
from US $8.42 |
||
|
7
|
7
13381-459-300 Pin, crank |
13381-459-300 |
US $40.99 |
||
|
8
|
8
14311-071-000 Sprocket (15t) |
14311-071-000 |
from US $23.39 |
||
|
9
|
9
90701-HB6-010 Key (25x14x4) |
90701-HB6-010 |
from US $2.87 |
||
|
10
|
10
91001-071-003 Bearing (6305) |
91001-071-003 |
from US $17.41 |
||
|
10
|
10
91001-071-008 Bearing (6305) |
91001-071-008 |
from US $14.28 |
||
|
11
|
11
91002-383-003 Bearing |
91002-383-003 |
US $13.94 |
||
|
11
|
11
91003-383-003
Bearing
|
91003-383-003 |
— | ||
|
11
|
11
91004-383-003 Bearing |
91004-383-003 |
from US $15.07 |
||
|
12
|
12
94601-15000 Clip, piston pin, 15mm |
94601-15000 |
from US $0.44 |
