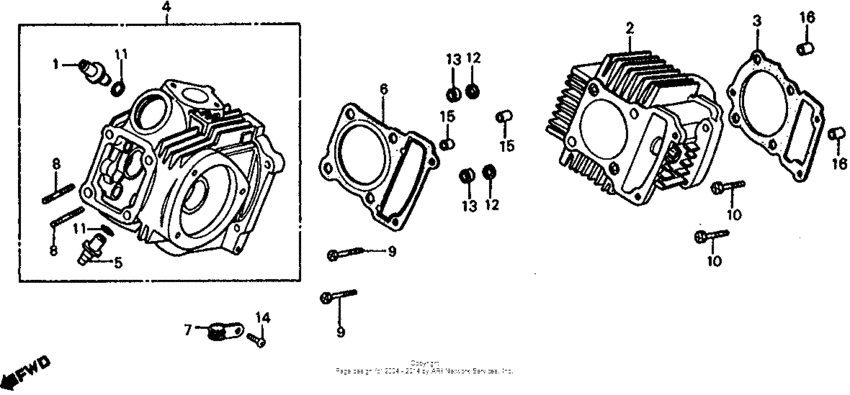

Cylinder head + cylinder Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12231-VM6-405
Guide, ex. valve
|
12231-VM6-405 |
— | ||
|
2
|
2
12100-VM6-405
Cylinder
|
12100-VM6-405 |
— | ||
|
3
|
3
12191-VM6-306 Gasket, cylinder |
12191-VM6-306 |
US $11.10 |
||
|
4
|
4
12200-VM6-010
Cylinder head
|
12200-VM6-010 |
— | ||
|
5
|
5
12231-VM6-405
Guide, ex. valve
|
12231-VM6-405 |
— | ||
|
6
|
6
12250-VM6-003
Gasket, cyl hd
|
12250-VM6-003 |
— | ||
|
7
|
7
32902-943-000
Clip, pulser wire
|
32902-943-000 |
— | ||
|
8
|
8
90033-041-020 Bolt, stud (6x32) |
90033-041-020 |
from US $2.44 |
||
|
9
|
9
90082-035-010 Bolt (6mm) |
90082-035-010 |
from US $2.15 |
||
|
10
|
10
90082-459-010 Bolt, sealing (6mm) |
90082-459-010 |
US $2.70 |
||
|
11
|
11
91305-028-158 O-ring (9x1.6) |
91305-028-158 |
US $3.55 |
||
| replacement | |||||
|
11
|
11
91305-028-900 O-ring (9x1.6) |
91305-028-900 |
from US $3.85 |
||
|
11
|
11
91305-028-900 O-ring (9x1.6) |
91305-028-900 |
from US $3.85 |
||
|
12
|
12
91306-968-004
Gasket (7.5mm)
|
91306-968-004 |
— | ||
|
13
|
13
91502-968-000 Collar |
91502-968-000 |
US $2.65 |
||
|
14
|
14
9350006010 Screw, pan, 6x10 |
9350006010 |
from US $0.44 |
||
| replacement | |||||
|
14
|
14
93500-060100A Screw, pan, 6x10 |
93500-060100A |
from US $0.44 |
||
|
14
|
14
93500-060100A Screw, pan, 6x10 |
93500-060100A |
from US $0.44 |
||
|
15
|
15
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
16
|
16
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
