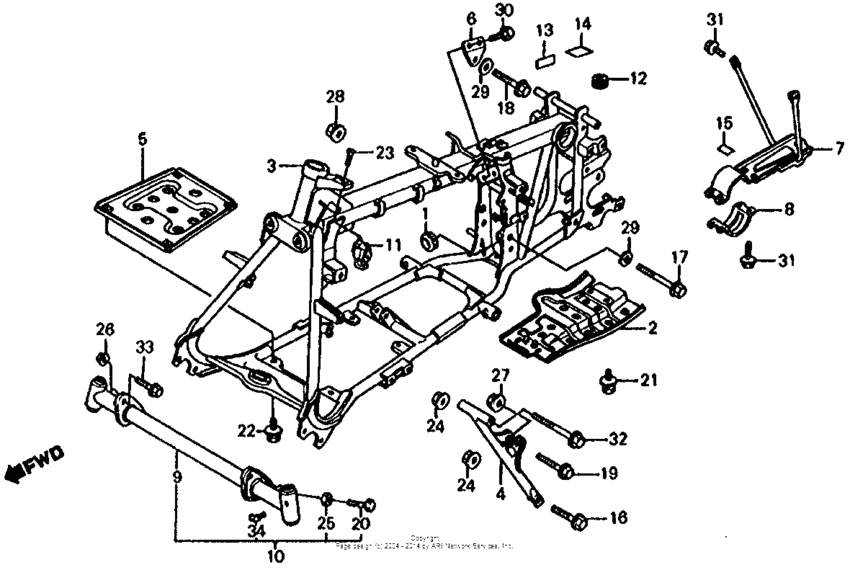

Frame Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32176-VM6-000
Grommet, wire
|
32176-VM6-000 |
— | ||
|
2
|
2
40528-VM6-000
Plate, protector
|
40528-VM6-000 |
— | ||
|
3
|
3
50100-VM6-000
Body comp.,frame
|
50100-VM6-000 |
— | ||
|
4
|
4
50102-VM6-000
Pipe, down
|
50102-VM6-000 |
— | ||
|
5
|
5
50180-VM6-000
Plate, fr. protector
|
50180-VM6-000 |
— | ||
|
6
|
6
50351-VM6-000
Hanger, engine
|
50351-VM6-000 |
— | ||
|
7
|
7
50810-VM6-000
Hitch, trailer
|
50810-VM6-000 |
— | ||
|
8
|
8
50812-VM6-000
Brkt, hitch (lower)
|
50812-VM6-000 |
— | ||
|
9
|
9
51330-VM6-000
Pipe,knuckle
|
51330-VM6-000 |
— | ||
|
12
|
12
61103-357-000 Rubber, fr. fender mounting |
61103-357-000 |
from US $0.14 |
||
|
13
|
13
87136-VM3-000
Label, main fuse
|
87136-VM3-000 |
— | ||
|
14
|
14
87506-VM6-000
Label
|
87506-VM6-000 |
— | ||
|
15
|
15
87508-VM6-000
Label, trailer hitch
|
87508-VM6-000 |
— | ||
|
16
|
16
95801-100-450-8 BoltFLANGE, 10X45 |
95801-100-450-8 |
from US $0.89 |
||
|
17
|
17
90116-VM6-003 Bolt, flg (10x110) |
90116-VM6-003 |
from US $10.79 |
||
|
18
|
18
90018-KY4-900
Bolt, flg (10x122)
|
90018-KY4-900 |
— | ||
|
19
|
19
90119-VM6-003 Bolt, flange, 8x55 |
90119-VM6-003 |
from US $6.17 |
||
|
20
|
20
90131-VM6-003
Bolt, hex. (10x35)
|
90131-VM6-003 |
— | ||
|
21
|
21
90155-964-670
Bolt-washer (8x16)
|
90155-964-670 |
— | ||
|
22
|
22
90156-964-670
Bolt-washer (8x12)
|
90156-964-670 |
— | ||
|
24
|
24
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
25
|
25
90236-KA2-680
Nut,hex.,10mm
|
90236-KA2-680 |
— | ||
|
26
|
26
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
27
|
27
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
28
|
28
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
29
|
29
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
30
|
30
95700-0801600 Bolt, flange, 8x16 |
95700-0801600 |
from US $0.59 |
||
| replacement | |||||
|
30
|
30
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
30
|
30
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
31
|
31
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
32
|
32
95701-101-000-8 BoltFLANGE, 10X100 |
95701-101-000-8 |
from US $0.74 |
||
|
33
|
33
95701-120-250-8 BoltFLANGE, 12X25 |
95701-120-250-8 |
from US $1.04 |
||
