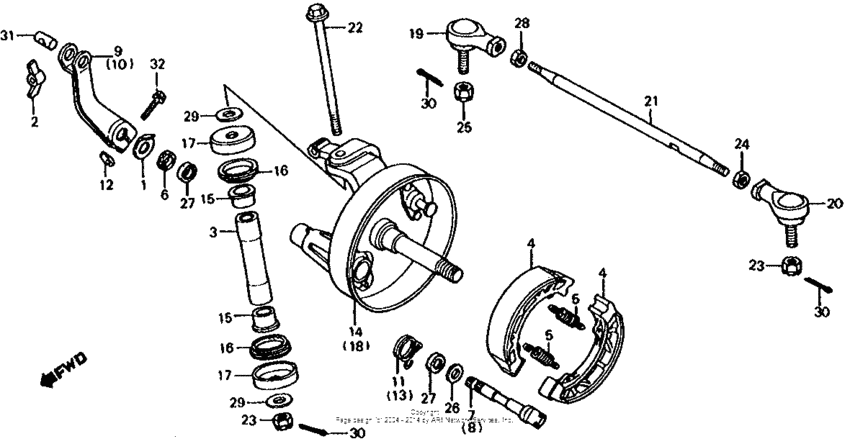

Front brake panel + tie rod Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06450-178-932 Shoe set, brake |
06450-178-932 |
from US $33.07 |
||
|
1
|
1
43145-KB4-000 Indicator, rr. brake |
43145-KB4-000 |
from US $5.71 |
||
|
2
|
2
43459-434-000 Nut, brake adjust |
43459-434-000 |
from US $7.55 |
||
|
3
|
3
44622-VM6-000
Collar,kingpin
|
44622-VM6-000 |
— | ||
|
4
|
4
45120-096-652 *451a2-096-305 |
45120-096-652 |
US $7.48 |
||
|
5
|
5
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.15 |
||
|
6
|
6
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
7
|
7
45141-VM6-000
Cam, r. fr. brake
|
45141-VM6-000 |
— | ||
|
8
|
8
45151-VM6-000
Cam, l. fr. brake
|
45151-VM6-000 |
— | ||
|
9
|
9
45410-VM6-000
Arm,front brake,r
|
45410-VM6-000 |
— | ||
|
10
|
10
45420-VM6-000
Arm, l. fr. brake
|
45420-VM6-000 |
— | ||
|
11
|
11
45435-VM6-000
Spring, r. fr.
|
45435-VM6-000 |
— | ||
|
12
|
12
45436-001-000 Nut, fr. brake arm setting |
45436-001-000 |
from US $2.22 |
||
|
13
|
13
45445-VM6-000
Spring, l. fr.
|
45445-VM6-000 |
— | ||
|
14
|
14
51210-VM6-000
Knuckle comp r
|
51210-VM6-000 |
— | ||
|
15
|
15
51215-VM6-003 Bush, kingpin |
51215-VM6-003 |
from US $10.95 |
||
|
16
|
16
51217-VM6-003
Dust seal,kingpin
|
51217-VM6-003 |
— | ||
|
17
|
17
51218-VM6-000
Cap,dust seal
|
51218-VM6-000 |
— | ||
|
18
|
18
51220-VM6-000
Knuckle, l.
|
51220-VM6-000 |
— | ||
|
19
|
19
53150-HB3-003 Joint, ball |
53150-HB3-003 |
from US $35.50 |
||
|
20
|
20
53158-HB3-003 Joint, ball |
53158-HB3-003 |
from US $35.50 |
||
|
21
|
21
53521-VM6-000
Tie-rod
|
53521-VM6-000 |
— | ||
|
22
|
22
90198-VM6-000
Bolt, kingpin
|
90198-VM6-000 |
— | ||
|
23
|
23
90305-041-000 Nut,rear axle |
90305-041-000 |
from US $4.31 |
||
|
24
|
24
90311-VM5-010 Nut, hex., 10mm (left hand thread) |
90311-VM5-010 |
from US $3.01 |
||
|
25
|
25
90320-601-000 NutCASTLE, 10MM |
90320-601-000 |
from US $3.15 |
||
|
26
|
26
90451-115-000 Washer, 14.2mm |
90451-115-000 |
from US $3.11 |
||
|
27
|
27
91208-611-005 Dust seal14X20X4 (NOK) |
91208-611-005 |
from US $2.74 |
||
|
28
|
28
9403010200 Nut, hex., 10mm |
9403010200 |
from US $0.52 |
||
|
29
|
29
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
30
|
30
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
31
|
31
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
32
|
32
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
32
|
32
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
32
|
32
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
