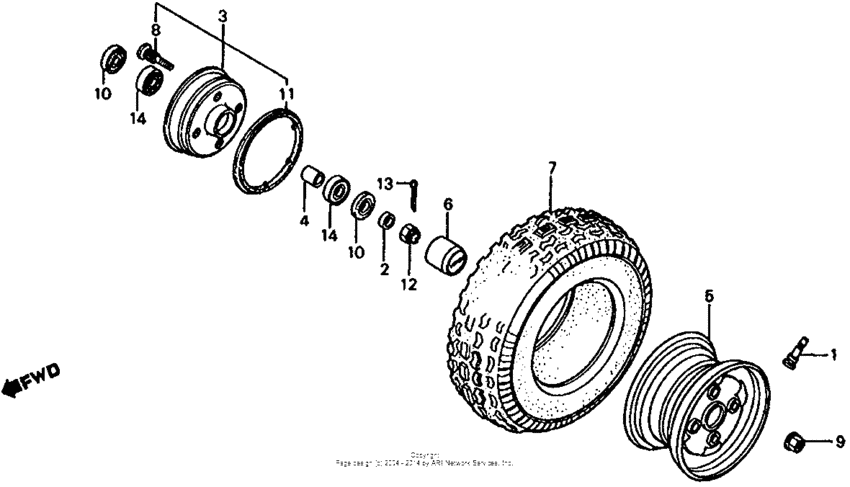

Front wheel Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
2
|
2
44312-HC3-000 Colr, fr. axle side |
44312-HC3-000 |
US $5.87 |
||
|
3
|
3
44610-VM6-680 Hub, fr. wheel |
44610-VM6-680 |
from US $150.67 |
||
|
4
|
4
44621-VM6-000
Collar,fr.hub b
|
44621-VM6-000 |
— | ||
|
5
|
5
44701-VM6-000
Rim comp,fr wheel
|
44701-VM6-000 |
— | ||
|
6
|
6
44732-VM6-010 Cap, wheel center |
44732-VM6-010 |
from US $11.10 |
||
|
7
|
7
44751-VM6-682AT
Tire (20x7.00-8)
|
44751-VM6-682AT |
— | ||
|
8
|
8
90103-VM6-300 Bolt, wheel (8x20) |
90103-VM6-300 |
from US $4.88 |
||
|
9
|
9
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
10
|
10
91205-VM6-003 Dust seal (23x35x7) |
91205-VM6-003 |
from US $7.55 |
||
|
11
|
11
91751-VM6-000 Seal, brake drum |
91751-VM6-000 |
from US $12.73 |
||
|
12
|
12
94012-162000S Nut, castle (16mm) |
94012-162000S |
from US $1.48 |
||
|
13
|
13
94201-40250 PinSPLIT, 4.0X25 |
94201-40250 |
from US $0.44 |
||
|
14
|
14
96150-600-301-0 Bearing, radial ball, 6003 |
96150-600-301-0 |
from US $9.03 |
