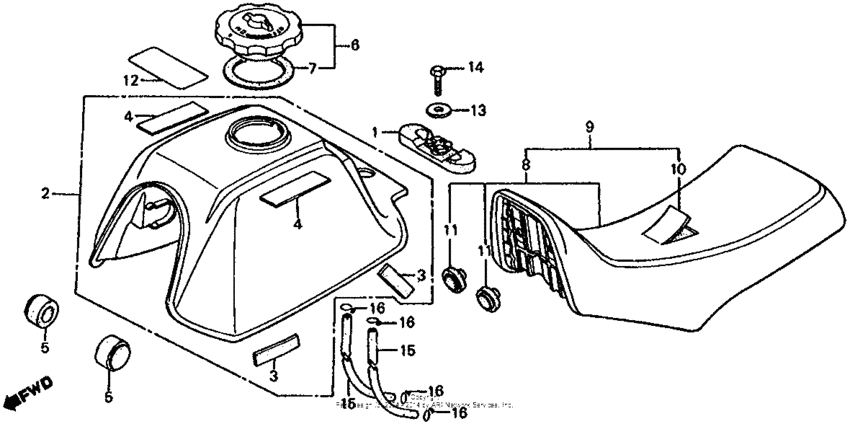

Fuel tank + seat Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17509-437-000 Rubber,tank rr. |
17509-437-000 |
US $13.91 |
||
|
2
|
2
17510-VM6-680ZA
Tank comp *r-109*
|
17510-VM6-680ZA |
— | ||
|
3
|
3
17511-VM6-300
Rubber, tank spacer
|
17511-VM6-300 |
— | ||
|
4
|
4
17512-VM6-003
Seat, protection
|
17512-VM6-003 |
— | ||
|
5
|
5
17611-028-000 Rubber, fr |
17611-028-000 |
from US $3.85 |
||
|
6
|
6
17620-HC3-505
Cap comp.,fuel ta
Use up to Frame SN FC041871 |
17620-HC3-505 |
— | ||
|
7
|
7
17631-899-000 Packing, fuel filler cap |
17631-899-000 |
US $8.16 |
||
| replacement | |||||
|
7
|
7
17631-899-010 Packing, fuel filler cap |
17631-899-010 |
US $3.70 |
||
|
8
|
8
77100-VM6-003
Seat
|
77100-VM6-003 |
— | ||
|
11
|
11
77211-MB0-000 Rubber, seat stopper |
77211-MB0-000 |
from US $5.21 |
||
|
12
|
12
87504-VM4-770
Mark, drive caution
|
87504-VM4-770 |
— | ||
|
12
|
12
87561-VM6-000
Mark,drive caut
|
87561-VM6-000 |
— | ||
|
13
|
13
90504-567-000
Washer
|
90504-567-000 |
— | ||
|
14
|
14
92101-06012-0H BoltHEX., 6X12 |
92101-06012-0H |
from US $0.44 |
||
|
15
|
15
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
16
|
16
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
