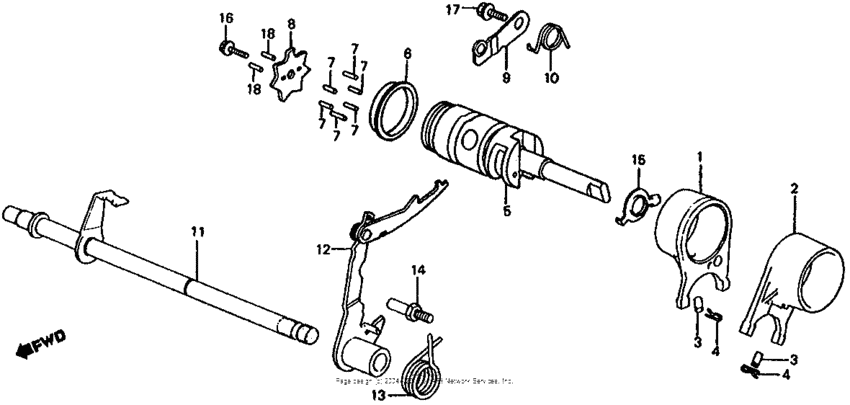

Gearshift drum Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-VM6-000 Fork, r. gearshift |
24211-VM6-000 |
US $42.94 |
||
|
2
|
2
24221-VM6-000
Fork, l. gearshift
|
24221-VM6-000 |
— | ||
|
3
|
3
24261-121-740 Pin |
24261-121-740 |
from US $2.22 |
||
| replacement | |||||
|
3
|
3
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
3
|
3
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
4
|
4
24263-028-000 Clip |
24263-028-000 |
from US $2.15 |
||
|
5
|
5
24300-VM6-000
Shift drum
|
24300-VM6-000 |
— | ||
|
6
|
6
24307-VM6-000
Colr, gearshift drum
|
24307-VM6-000 |
— | ||
|
7
|
7
24421-230-000 Pin, gearshift drum |
24421-230-000 |
from US $9.18 |
||
|
8
|
8
24425-VM6-000
Plate
|
24425-VM6-000 |
— | ||
|
9
|
9
24430-459-950 Arm |
24430-459-950 |
from US $13.47 |
||
|
10
|
10
24435-051-000 Spring, drum stopper |
24435-051-000 |
US $3.18 |
||
|
11
|
11
24610-968-000
Spindle, gearshift
|
24610-968-000 |
— | ||
|
12
|
12
24630-VM6-010
Arm, gearshift
|
24630-VM6-010 |
— | ||
|
13
|
13
24651-121-710 Spring |
24651-121-710 |
US $4.51 |
||
|
14
|
14
24652-035-000 Pin |
24652-035-000 |
from US $4.04 |
||
|
15
|
15
35752-VM6-000 Rotor |
35752-VM6-000 |
US $5.03 |
||
|
16
|
16
90002-VM6-003
Bolt, knock (8mm)
|
90002-VM6-003 |
— | ||
|
17
|
17
90023-041-010 Bolt |
90023-041-010 |
from US $3.23 |
||
|
18
|
18
9622030085 Roller (3x8.5) |
9622030085 |
from US $0.22 |
||
