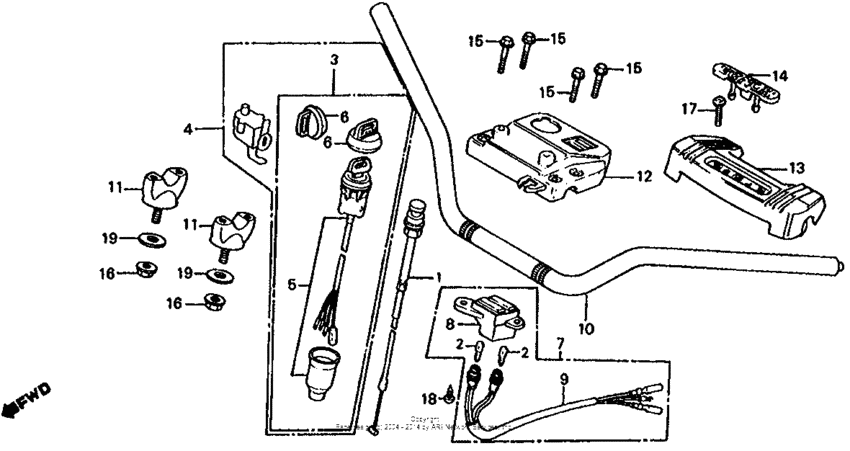

Handlebar + top bridge Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17950-VM6-680
Cable comp.,choke
|
17950-VM6-680 |
— | ||
|
2
|
2
34908-MB0-003 Bulb, wedge base (12v 3w) |
34908-MB0-003 |
from US $2.22 |
||
| replacement | |||||
|
2
|
2
34275-S2X-003 Bulb 12V 2.3W Wed |
34275-S2X-003 |
from US $2.22 |
||
|
3
|
3
35010-HB6-671
Lock set
|
35010-HB6-671 |
— | ||
|
5
|
5
35010-HB6-671
Lock set
|
35010-HB6-671 |
— | ||
|
6
|
6
35113-VM6-007 Cap |
35113-VM6-007 |
US $6.33 |
||
|
7
|
7
38400-VM6-003
Indicator assy.
|
38400-VM6-003 |
— | ||
|
8
|
8
38401-969-003
Case comp
|
38401-969-003 |
— | ||
|
9
|
9
38402-VM6-000
Wire
|
38402-VM6-000 |
— | ||
|
10
|
10
53100-VM6-000
Pipe,strg.handle
|
53100-VM6-000 |
— | ||
|
11
|
11
53130-HB9-000
Holder, handle
|
53130-HB9-000 |
— | ||
|
11
|
11
53130-958-000 Holder, handlebar |
53130-958-000 |
US $17.34 |
||
| replacement | |||||
|
11
|
11
53130-HB9-000
Holder, handle
|
53130-HB9-000 |
— | ||
|
12
|
12
53131-969-000
Holder,handle up.
|
53131-969-000 |
— | ||
|
13
|
13
53205-958-682
Cover, handlebar
|
53205-958-682 |
— | ||
|
14
|
14
53206-958-003
Label
|
53206-958-003 |
— | ||
|
15
|
15
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $2.14 |
||
|
16
|
16
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
17
|
17
93891-060-200-8 Screw-washer6X20 |
93891-060-200-8 |
from US $0.52 |
||
|
18
|
18
93903-34320 ScrewTAPPING, 4X12 |
93903-34320 |
from US $0.37 |
||
|
19
|
19
90507-VM6-680
Washer (10x28)
Use from Frame SN FC041892 |
90507-VM6-680 |
— | ||
|
19
|
19
94101-10800 WasherPLAIN, 10MM Use up to Frame SN FC041891 |
94101-10800 |
from US $0.52 |
||
