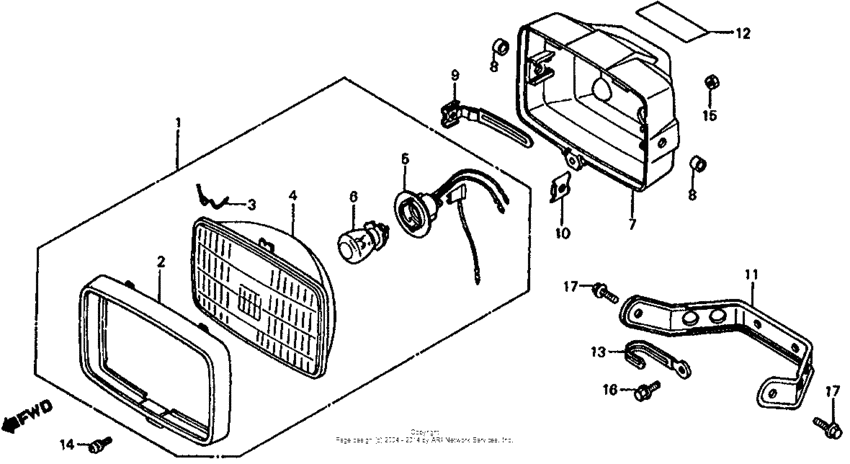

Headlight Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-VM4-003
Light assy head
|
33100-VM4-003 |
— | ||
|
2
|
2
33101-943-003
Rim,headlight
|
33101-943-003 |
— | ||
|
3
|
3
33109-943-003
Spg,unit holder
|
33109-943-003 |
— | ||
|
4
|
4
33120-943-003
Unit,headlight
|
33120-943-003 |
— | ||
|
5
|
5
33130-943-013
Socket, headlight
|
33130-943-013 |
— | ||
|
6
|
6
34901-HC3-003 Bulb (12v45/45w) |
34901-HC3-003 |
from US $6.94 |
||
|
7
|
7
61301-VM6-000
Case,head light
|
61301-VM6-000 |
— | ||
|
8
|
8
61302-229-300 Collar,light.case |
61302-229-300 |
US $2.66 |
||
|
9
|
9
61303-VM6-000 Nut,hd/lt case |
61303-VM6-000 |
from US $6.96 |
||
|
10
|
10
61303-105-000 Nut,light case |
61303-105-000 |
from US $3.80 |
||
|
11
|
11
61311-VM6-000
Brkt,hd/lt case
|
61311-VM6-000 |
— | ||
|
12
|
12
87504-VM5-000
Label,use caution
|
87504-VM5-000 |
— | ||
|
13
|
13
91404-VM6-000 Clip, wire harness |
91404-VM6-000 |
from US $4.44 |
||
|
14
|
14
93892-050-120-0 Screw-washer5X12 |
93892-050-120-0 |
from US $0.47 |
||
|
15
|
15
94001-050-800-S NutHEX., 5MM |
94001-050-800-S |
from US $0.37 |
||
|
16
|
16
95700-0801600 Bolt, flange, 8x16 |
95700-0801600 |
from US $0.59 |
||
| replacement | |||||
|
16
|
16
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
16
|
16
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
17
|
17
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
