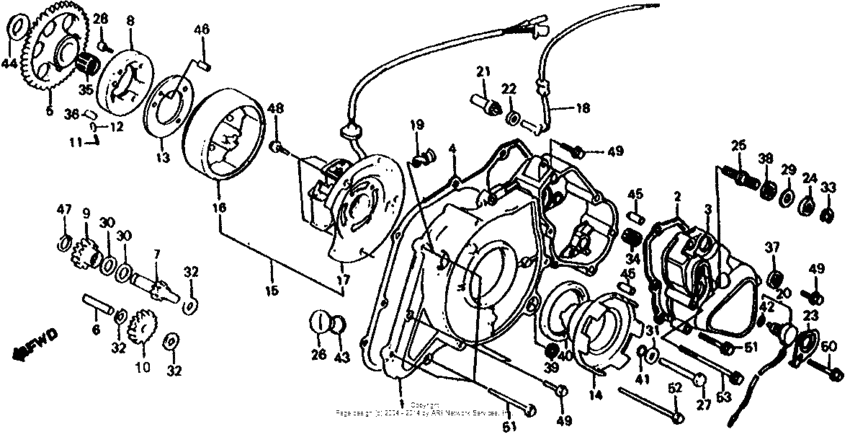

Left crankcase cover + alternator + sub-transmission cover Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-VM6-000
Cover, l. crankcase
|
11341-VM6-000 |
— | ||
|
2
|
2
11363-VM6-306 Gasket |
11363-VM6-306 |
US $9.98 |
||
|
3
|
3
11370-VM6-000
Cover, reduction gear
|
11370-VM6-000 |
— | ||
|
4
|
4
11395-VM6-306 Gasket, l |
11395-VM6-306 |
US $11.66 |
||
|
5
|
5
28110-958-680 Gear, starter driven |
28110-958-680 |
from US $126.02 |
||
|
6
|
6
28115-968-000
Shaft a, idle
|
28115-968-000 |
— | ||
|
7
|
7
28116-968-010
Shaft b
|
28116-968-010 |
— | ||
|
8
|
8
28120-426-000
Clutch outer
|
28120-426-000 |
— | ||
|
9
|
9
28121-968-010 Gear a, starter idle |
28121-968-010 |
US $39.76 |
||
|
10
|
10
28122-968-000 Gear b, starter idle |
28122-968-000 |
US $36.33 |
||
|
11
|
11
28125-426-000 Spring |
28125-426-000 |
from US $2.22 |
||
|
12
|
12
28126-323-000 Cap |
28126-323-000 |
from US $4.29 |
||
|
13
|
13
28128-958-680
Plate
|
28128-958-680 |
— | ||
|
14
|
14
28431-968-010
Pulley
|
28431-968-010 |
— | ||
|
15
|
15
31100-VM5-014
Gen assy,flywhell
|
31100-VM5-014 |
— | ||
|
16
|
16
31110-VM5-004
Rotor
|
31110-VM5-004 |
— | ||
|
17
|
17
31120-VM5-014
Stator Comp
|
31120-VM5-014 |
— | ||
|
18
|
18
32170-VM6-010
Cord,neutral
|
32170-VM6-010 |
— | ||
|
20
|
20
35600-VM6-003
Sw.assy.,reverse
|
35600-VM6-003 |
— | ||
|
21
|
21
35750-071-030 Contact assy. |
35750-071-030 |
US $7.55 |
||
|
22
|
22
35752-071-330 Spacer |
35752-071-330 |
US $2.96 |
||
|
23
|
23
35754-VM6-000
Cap,rvs.contact
|
35754-VM6-000 |
— | ||
|
24
|
24
35762-VM6-000
Indicator,neutral
|
35762-VM6-000 |
— | ||
|
25
|
25
35764-VM6-000
Shaft,neutral ind
|
35764-VM6-000 |
— | ||
|
26
|
26
90081-958-680
Cap, ignition timing
|
90081-958-680 |
— | ||
|
27
|
27
90083-958-680
Bolt (8mm)
|
90083-958-680 |
— | ||
|
28
|
28
90085-413-781 Bolt, socket (6mm) |
90085-413-781 |
from US $4 |
||
|
29
|
29
90406-VM6-000 Washer, thrust, 8.1mm |
90406-VM6-000 |
from US $2.44 |
||
|
30
|
30
90412-187-000 Washer, thrust, 15mm |
90412-187-000 |
from US $2.74 |
||
|
31
|
31
90426-437-000 Washer, rotor setting |
90426-437-000 |
from US $6.51 |
||
|
32
|
32
90452-187-000 Washer, 10x21 |
90452-187-000 |
from US $2.89 |
||
|
33
|
33
90605-230-000 Circlip, 5mm |
90605-230-000 |
from US $2.15 |
||
|
34
|
34
91024-GJ5-003 Bearing (12x16x10) |
91024-GJ5-003 |
from US $5.92 |
||
|
35
|
35
91021-689-902
Bearing (20x26x17)
|
91021-689-902 |
— | ||
|
36
|
36
91101-377-000 Roller (10.2x11.5) |
91101-377-000 |
from US $2.59 |
||
|
37
|
37
91202-HC0-003 Oil seal, 10x20x5 (arai) |
91202-HC0-003 |
from US $3.63 |
||
|
38
|
38
91202-VM6-003
Oil seal,8x14x4 (
|
91202-VM6-003 |
— | ||
|
39
|
39
91204-HB2-003 Oil seal (11.6x19x6) |
91204-HB2-003 |
from US $5.92 |
||
|
40
|
40
91204-968-013 Oil seal (45x60x9) |
91204-968-013 |
from US $13.41 |
||
|
41
|
41
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
42
|
42
91312-107-000 O-ring (7x1.7) |
91312-107-000 |
from US $2.37 |
||
|
43
|
43
91310-PH3-003 O-ring18X2.4 |
91310-PH3-003 |
from US $1.70 |
||
|
43
|
43
91333-422-003 O-ring (17.8x2.4) |
91333-422-003 |
US $2.31 |
||
| replacement | |||||
|
43
|
43
91310-PH3-003 O-ring18X2.4 |
91310-PH3-003 |
from US $1.70 |
||
|
44
|
44
91501-968-000
Collar, special
|
91501-968-000 |
— | ||
|
45
|
45
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
47
|
47
94510-14000 CirclipEXTERNAL, 14MM |
94510-14000 |
from US $0.22 |
||
|
48
|
48
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
49
|
49
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
50
|
50
96001-0605000 Bolt, flange (6x50) |
96001-0605000 |
from US $0.81 |
||
|
51
|
51
96001-0605500 Bolt, flange (6x55) |
96001-0605500 |
from US $0.81 |
||
|
52
|
52
96001-060-650-0 BoltFLANGE, 6X65 |
96001-060-650-0 |
from US $0.89 |
||
|
53
|
53
96001-0608007 Bolt, flange (6x80) |
96001-0608007 |
from US $0.89 |
||
|
53
|
53
96001-0608000 Bolt, flange (6x80) |
96001-0608000 |
from US $0.89 |
||
