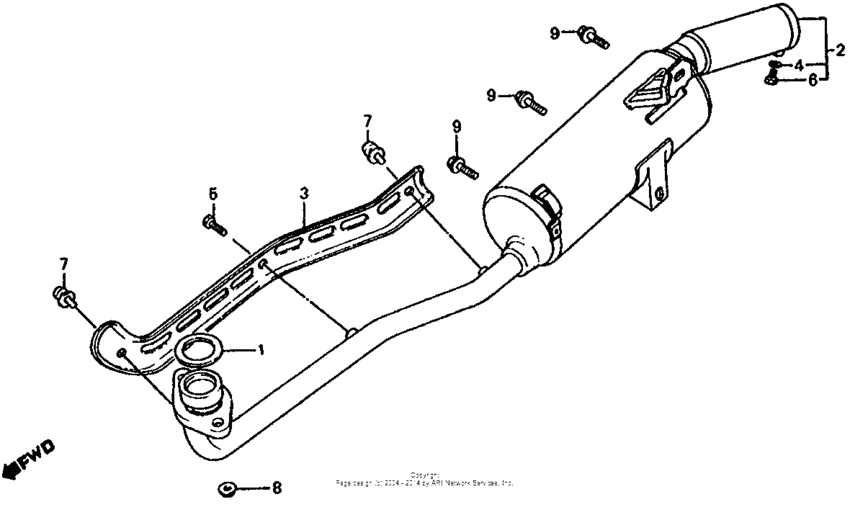

Muffler Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-HB2-900 Gasket, ex. pipe |
18291-HB2-900 |
from US $5.33 |
||
|
2
|
2
18300-VM6-003
Muffler comp,exh.
|
18300-VM6-003 |
— | ||
|
3
|
3
18321-VM6-003
Protector, ex. pipe
|
18321-VM6-003 |
— | ||
|
4
|
4
90508-VM6-003
Washer, plain, 10mm
|
90508-VM6-003 |
— | ||
|
5
|
5
92000-06008-08 BoltHEX., 6X8 |
92000-06008-08 |
from US $0.44 |
||
|
6
|
6
92101-10012-0G Bolt, hex. (10x12) |
92101-10012-0G |
US $0.59 |
||
|
7
|
7
93891-060-100-8 Screw-washer6X10 |
93891-060-100-8 |
from US $0.52 |
||
|
8
|
8
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
9
|
9
95701-080-120-8 BoltFLANGE, 8X12 |
95701-080-120-8 |
from US $0.62 |
