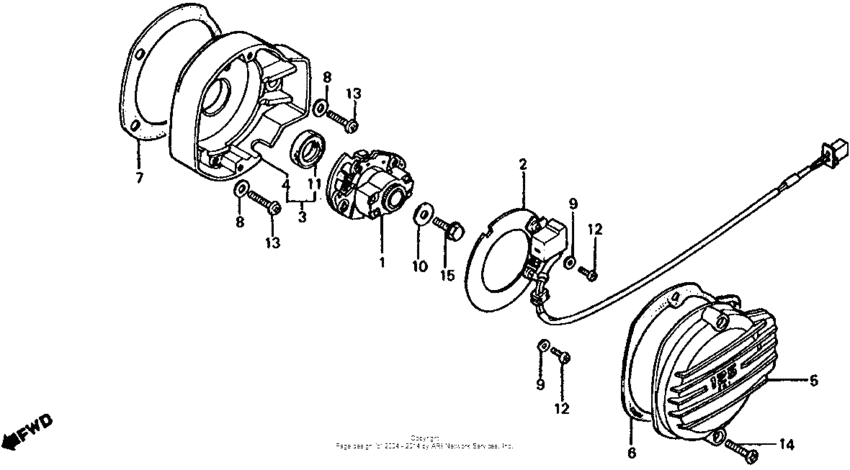

Pulse generator Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30220-459-751
Advancer, spark
|
30220-459-751 |
— | ||
|
2
|
2
30300-VM6-000
Generator,pulse
|
30300-VM6-000 |
— | ||
|
3
|
3
30360-968-000
Base assy
|
30360-968-000 |
— | ||
|
4
|
4
30361-121-740 Base |
30361-121-740 |
US $18.36 |
||
|
5
|
5
30371-968-000
Cvr, pulse generator
|
30371-968-000 |
— | ||
|
6
|
6
30391-121-631 Gasket |
30391-121-631 |
US $2.89 |
||
|
7
|
7
30392-121-631 Gasket, point base |
30392-121-631 |
US $3.55 |
||
|
8
|
8
90441-028-010 Washer, sealing, 6mm |
90441-028-010 |
from US $2.15 |
||
|
9
|
9
90482-028-000 Washer, 5mm |
90482-028-000 |
from US $2.15 |
||
|
10
|
10
90486-028-000 Washer, spark advancer setting |
90486-028-000 |
from US $2.65 |
||
|
11
|
11
91204-KE8-003 Oil seal, 13x22x5 (arai) |
91204-KE8-003 |
from US $2.68 |
||
|
12
|
12
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
13
|
13
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
14
|
14
93700-050220B Screw, oval (5x22) |
93700-050220B |
from US $0.59 |
||
|
15
|
15
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
