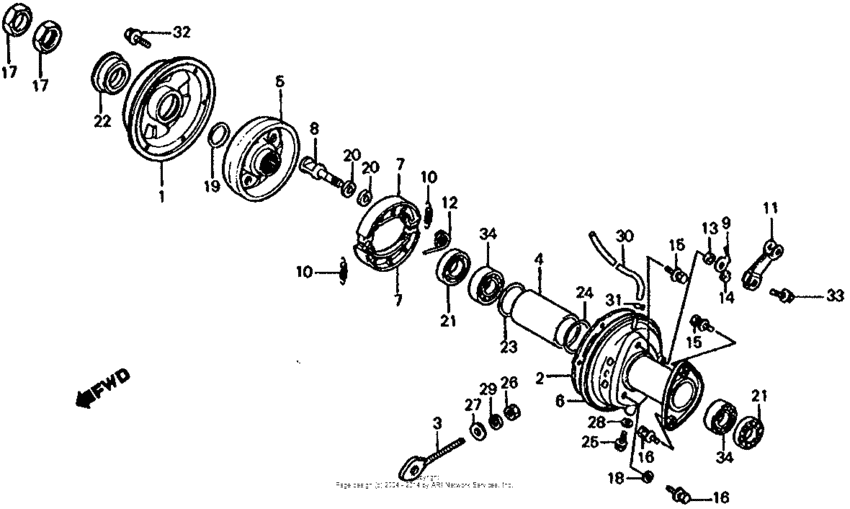

Rear brake drum Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06430-HF7-A30 Shoe set, brake |
06430-HF7-A30 |
from US $36.86 |
||
|
1
|
1
40532-968-680
Cover, brake drum
|
40532-968-680 |
— | ||
|
2
|
2
40539-968-000
Gasket, brake cover
|
40539-968-000 |
— | ||
|
3
|
3
40543-HB3-000 Adjuster, chain |
40543-HB3-000 |
from US $7.85 |
||
|
4
|
4
42621-968-000
Collar, rr.
|
42621-968-000 |
— | ||
|
5
|
5
42622-VM6-000
Drum, rr. brake
|
42622-VM6-000 |
— | ||
|
6
|
6
43100-VM6-000
Holder
|
43100-VM6-000 |
— | ||
|
7
|
7
06430-HF7-A30 Shoe set, brake |
06430-HF7-A30 |
from US $36.86 |
||
|
7
|
7
45120-303-690
Shoe, fr. brake
|
45120-303-690 |
— | ||
| replacement | |||||
|
7
|
7
06430-HF7-A30 Shoe set, brake |
06430-HF7-A30 |
from US $36.86 |
||
|
8
|
8
43141-968-680
Cam, rr. brake
|
43141-968-680 |
— | ||
|
9
|
9
43145-958-000
Indicator, brake
|
43145-958-000 |
— | ||
|
10
|
10
43151-329-000 Spring, brake shoe |
43151-329-000 |
from US $2.96 |
||
|
11
|
11
43410-VM6-000
Arm, rr. brake
|
43410-VM6-000 |
— | ||
|
12
|
12
43413-968-000
Spring, rr.
|
43413-968-000 |
— | ||
|
13
|
13
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
14
|
14
45436-001-000 Nut, fr. brake arm setting |
45436-001-000 |
from US $2.22 |
||
|
15
|
15
90116-958-003
Bolt-washer,12x25
|
90116-958-003 |
— | ||
|
16
|
16
90117-958-003
Bolt-washer,12x28
|
90117-958-003 |
— | ||
|
17
|
17
90307-968-000
Nut, rr. axle
|
90307-968-000 |
— | ||
|
18
|
18
90427-358-000
Washer
|
90427-358-000 |
— | ||
|
19
|
19
90481-HC4-000 Washer, taper |
90481-HC4-000 |
from US $4.74 |
||
|
19
|
19
90481-958-000 Washer, taper (32mm) |
90481-958-000 |
US $9.50 |
||
| replacement | |||||
|
19
|
19
90481-HC4-000 Washer, taper |
90481-HC4-000 |
from US $4.74 |
||
|
20
|
20
91208-611-005 Dust seal14X20X4 (NOK) |
91208-611-005 |
from US $2.74 |
||
|
21
|
21
91252-958-013 Dust seal (42x62x7) |
91252-958-013 |
from US $14.36 |
||
|
22
|
22
91253-968-005 Dust seal (45x65x15) |
91253-968-005 |
from US $17.32 |
||
|
23
|
23
91306-MA6-005 O-ring (31.7x2.4) |
91306-MA6-005 |
from US $3.92 |
||
|
24
|
24
91316-PY4-003 O-ring32.5X1.8 (ARAI) |
91316-PY4-003 |
from US $1.54 |
||
|
25
|
25
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
26
|
26
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
27
|
27
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
28
|
28
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
29
|
29
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
30
|
30
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
31
|
31
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
32
|
32
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
33
|
33
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
||
|
34
|
34
96150-6007010 Bearing, 6007 |
96150-6007010 |
from US $12.88 |
||
