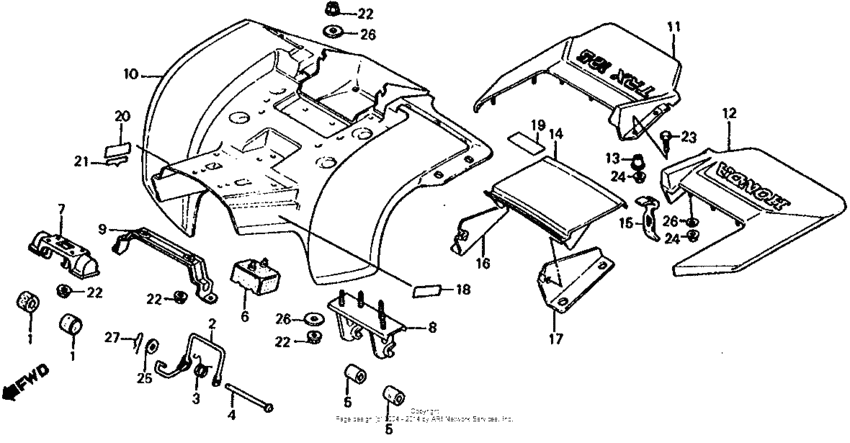

Rear fender Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17611-958-670
Cush,rr.fender fr
|
17611-958-670 |
— | ||
|
2
|
2
50221-VM6-000
Lever, lock
|
50221-VM6-000 |
— | ||
|
3
|
3
50222-VM6-000 Spring, seat lock |
50222-VM6-000 |
US $4 |
||
|
4
|
4
50223-VM6-000
Pin, lock lever
|
50223-VM6-000 |
— | ||
|
5
|
5
50801-VM6-000
Rubber,seat mount
|
50801-VM6-000 |
— | ||
|
6
|
6
77201-VM6-000
Cushion, seat
|
77201-VM6-000 |
— | ||
|
7
|
7
80101-VM6-000
Catch, rr. fender
|
80101-VM6-000 |
— | ||
|
8
|
8
80102-VM6-000
Hinge, rr. fender
|
80102-VM6-000 |
— | ||
|
9
|
9
80106-968-680
Brkt, fender support
|
80106-968-680 |
— | ||
|
10
|
10
80110-VM6-680ZA
Fdr, l. rr. *r109*
|
80110-VM6-680ZA |
— | ||
|
11
|
11
80111-VM6-680
Splash guard, r. rr.
|
80111-VM6-680 |
— | ||
|
12
|
12
80116-VM6-680
Splash guard, l. rr.
|
80116-VM6-680 |
— | ||
|
13
|
13
80117-943-010 Colr, rr. sph guard |
80117-943-010 |
US $4.08 |
||
|
14
|
14
80211-VM6-681
Lid, tool box
|
80211-VM6-681 |
— | ||
|
15
|
15
80214-943-000
Band, tool box
|
80214-943-000 |
— | ||
|
16
|
16
80251-943-013 Holder, r. rr. |
80251-943-013 |
US $9.95 |
||
|
17
|
17
80256-943-013
Holder, l. rr.
|
80256-943-013 |
— | ||
|
18
|
18
87135-VM6-000
Mark, chain caution
|
87135-VM6-000 |
— | ||
|
19
|
19
87510-VM5-000
Label
|
87510-VM5-000 |
— | ||
|
20
|
20
87533-VM6-000
Label, tire caution
|
87533-VM6-000 |
— | ||
|
21
|
21
87541-943-800ZA
Label (type1)
|
87541-943-800ZA |
— | ||
|
22
|
22
90114-SA0-000 NutSELF-LOCK, 6MM |
90114-SA0-000 |
from US $1.70 |
||
|
23
|
23
92101-06020-0G Bolt, hex. (6x20) |
92101-06020-0G |
from US $0.44 |
||
|
24
|
24
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
25
|
25
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
26
|
26
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
27
|
27
9425106400 Pin, lock, 6mm |
9425106400 |
from US $0.44 |
