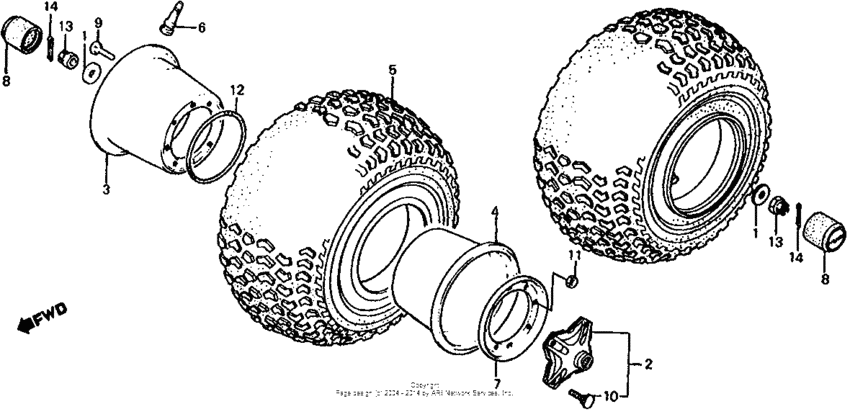

Rear wheel Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42322-VM6-000 Washer (14mm) |
42322-VM6-000 |
US $16.51 |
||
|
2
|
2
42410-VM6-000
Hub comp,rr wheel
|
42410-VM6-000 |
— | ||
|
3
|
3
42712-VM6-000
Rim, wheel (outer)
|
42712-VM6-000 |
— | ||
|
4
|
4
42713-VM6-000
Rim, wheel (inner)
|
42713-VM6-000 |
— | ||
|
5
|
5
42750-VM6-681
Tire (22x11-8 pa-3)
|
42750-VM6-681 |
— | ||
|
6
|
6
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
7
|
7
44714-VM6-000
Patch,support pl.
|
44714-VM6-000 |
— | ||
|
8
|
8
44732-VM6-010 Cap, wheel center |
44732-VM6-010 |
from US $11.10 |
||
|
9
|
9
90101-VM6-000 Bolt,wheel |
90101-VM6-000 |
US $5.76 |
||
|
10
|
10
90103-VM6-300 Bolt, wheel (8x20) |
90103-VM6-300 |
from US $4.88 |
||
|
11
|
11
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
12
|
12
91351-958-670 O-ring (160x4.2) |
91351-958-670 |
from US $13.72 |
||
|
13
|
13
94011-140000S Nut, castle, 14mm |
94011-140000S |
from US $1.33 |
||
|
14
|
14
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
14
|
14
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
14
|
14
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
