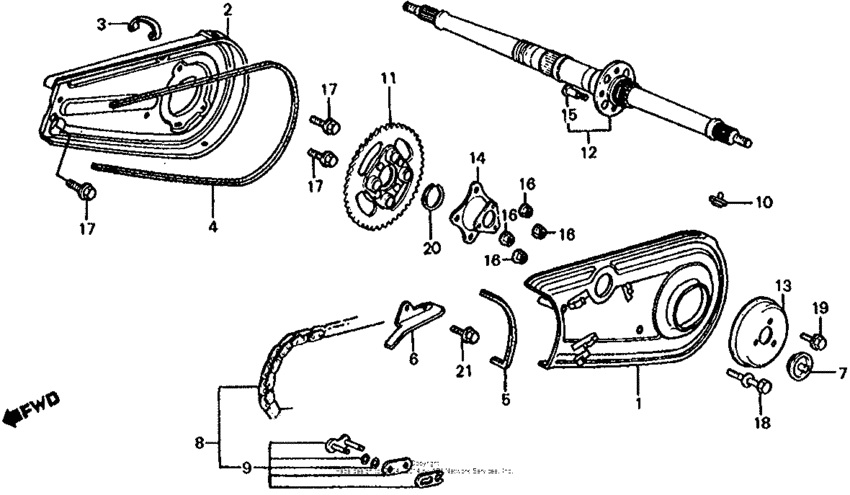

Rear wheel axle + chain case Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40521-VM6-000
Case, chain (outer)
|
40521-VM6-000 |
— | ||
|
2
|
2
40522-VM6-000
Case, inside chain
|
40522-VM6-000 |
— | ||
|
3
|
3
40523-VM6-000
Spring
|
40523-VM6-000 |
— | ||
|
4
|
4
40524-VM6-000
Seal
|
40524-VM6-000 |
— | ||
|
5
|
5
40525-VM6-000
Seal b, chain case
|
40525-VM6-000 |
— | ||
|
6
|
6
40526-968-000
Guide, chain
|
40526-968-000 |
— | ||
|
7
|
7
40529-958-010
Cap, chain peep hole
|
40529-958-010 |
— | ||
|
8
|
8
40530-VM6-003
Chain (428v-92)
|
40530-VM6-003 |
— | ||
|
9
|
9
40531-VM6-003
Master link
|
40531-VM6-003 |
— | ||
|
10
|
10
40545-958-000
Cap, chain
|
40545-958-000 |
— | ||
|
11
|
11
41200-VM6-000
Sprkt assy,final
|
41200-VM6-000 |
— | ||
|
12
|
12
42310-968-680
Axle, rr. wheel
|
42310-968-680 |
— | ||
|
13
|
13
42327-958-000
Plate, shield
|
42327-958-000 |
— | ||
|
14
|
14
42330-958-671
Flange, shield
|
42330-958-671 |
— | ||
|
15
|
15
90128-961-000 Bolt |
90128-961-000 |
from US $9.39 |
||
|
16
|
16
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
17
|
17
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
18
|
18
93491-0605508
Bolt-washer (6x55)
|
93491-0605508 |
— | ||
|
19
|
19
93402-060-100-8 Bolt-washer6X10 |
93402-060-100-8 |
from US $0.52 |
||
|
20
|
20
9456442100
Ring, snap (42mm)
|
9456442100 |
— | ||
|
21
|
21
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
