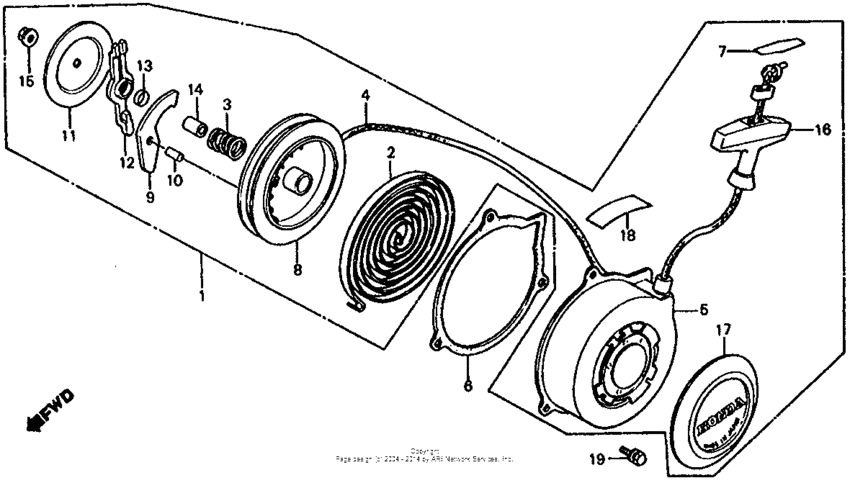

Recoil starter Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28400-VM6-004
Starter, recoil
|
28400-VM6-004 |
— | ||
|
2
|
2
28402-968-004
Spring
|
28402-968-004 |
— | ||
|
3
|
3
28404-968-004 Spring, friction |
28404-968-004 |
from US $3.18 |
||
|
4
|
4
28407-958-004 Rope, recoil starter |
28407-958-004 |
US $24.74 |
||
|
5
|
5
28410-968-004
Case, recoil starter
|
28410-968-004 |
— | ||
|
6
|
6
28411-968-405 Gasket |
28411-968-405 |
US $8.25 |
||
|
7
|
7
28414-958-004
Cap, knob
|
28414-958-004 |
— | ||
|
8
|
8
28420-968-004
Reel, starter
|
28420-968-004 |
— | ||
|
9
|
9
28422-ZE1-003 Ratchet, starter |
28422-ZE1-003 |
from US $4.14 |
||
|
10
|
10
28423-968-004
Pin, starter ratchet
|
28423-968-004 |
— | ||
|
11
|
11
28431-ZE1-003 Plate, friction |
28431-ZE1-003 |
US $8.16 |
||
|
12
|
12
28433-968-004
Guide, ratchet
|
28433-968-004 |
— | ||
|
13
|
13
28446-968-004 Cover, spring |
28446-968-004 |
from US $3.32 |
||
|
14
|
14
28447-968-004
Shaft, sub
|
28447-968-004 |
— | ||
|
15
|
15
28448-ZE1-003
Nut
|
28448-ZE1-003 |
— | ||
|
16
|
16
28461-958-003 Knob, starter |
28461-958-003 |
US $44.05 |
||
|
17
|
17
28470-968-004
Cvr, recoil starter
|
28470-968-004 |
— | ||
|
18
|
18
87103-VM5-000
Mark
|
87103-VM5-000 |
— | ||
|
19
|
19
93401-060-160-0 Bolt-washer6X16 |
93401-060-160-0 |
from US $0.52 |
