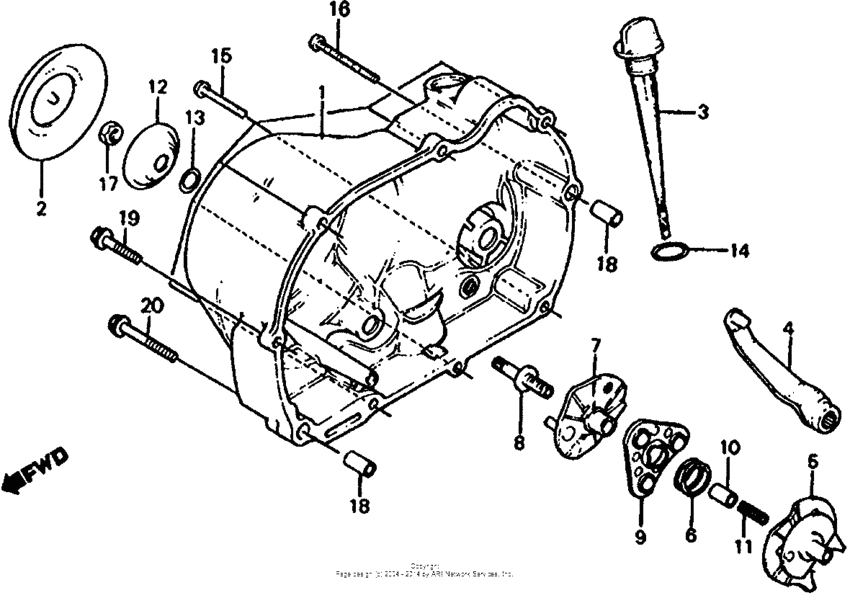

Right crankcase cover Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-943-000
Cover, r. crankcase
|
11330-943-000 |
— | ||
|
2
|
2
11335-968-000
Protector, r
|
11335-968-000 |
— | ||
|
3
|
3
15650-459-020 Dipstick, oilUse up to Engine SN 2039821 |
15650-459-020 |
US $6.07 |
||
|
4
|
4
22811-046-010 Lever, clutch |
22811-046-010 |
US $15.64 |
||
|
5
|
5
22820-918-010 Plate, clutch cam |
22820-918-010 |
from US $13.47 |
||
| replacement | |||||
|
5
|
5
22820-918-020 Plate, clutch cam |
22820-918-020 |
from US $12.43 |
||
|
5
|
5
22820-918-020 Plate, clutch cam |
22820-918-020 |
from US $12.43 |
||
|
6
|
6
22825-046-000 Spring, cam plate side |
22825-046-000 |
from US $2.15 |
||
|
7
|
7
22830-046-000
Plate, clutch lifter
|
22830-046-000 |
— | ||
|
8
|
8
22846-053-030 Bolt, clutch adj |
22846-053-030 |
US $4.74 |
||
|
9
|
9
22860-046-000 Retainer, clutch ball |
22860-046-000 |
from US $5.92 |
||
|
10
|
10
25551-918-007 Through, oil |
25551-918-007 |
US $8.14 |
||
| replacement | |||||
|
10
|
10
25551-GEL-A80 Through, oil |
25551-GEL-A80 |
from US $3.89 |
||
|
11
|
11
25555-046-000 Spring, oil guide |
25555-046-000 |
US $2.37 |
||
|
12
|
12
90485-102-701 Washer |
90485-102-701 |
US $4.59 |
||
|
13
|
13
91306-HB3-003 O-ring (8x1.7) |
91306-HB3-003 |
from US $2.15 |
||
|
14
|
14
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
14
|
14
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4 |
||
|
15
|
15
93500-060-250-A ScrewPAN, 6X25 |
93500-060-250-A |
from US $0.52 |
||
|
16
|
16
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
17
|
17
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
18
|
18
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
19
|
19
96000-0602500 Bolt, flange, 6x25 |
96000-0602500 |
US $24.50 |
||
| replacement | |||||
|
19
|
19
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
19
|
19
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
20
|
20
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.81 |
||
