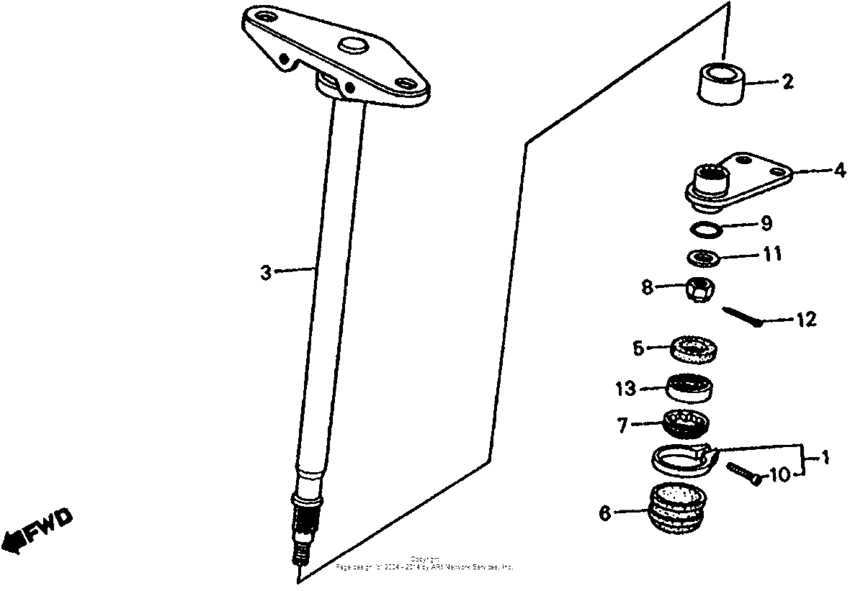

Steering shaft Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17257-KL8-000
Band,air/c.tube
|
17257-KL8-000 |
— | ||
|
2
|
2
53221-VM6-004 Bush,steering |
53221-VM6-004 |
from US $13.72 |
||
|
3
|
3
53310-VM6-010
Shaft, steering
Use up to Frame SN FC041891 |
53310-VM6-010 |
— | ||
|
4
|
4
53315-VM6-000 Centre arm,strg. |
53315-VM6-000 |
US $32.32 |
||
|
5
|
5
53316-VM6-003
Seal, center arm
|
53316-VM6-003 |
— | ||
|
6
|
6
53317-VM6-000
Cap,centre arm
|
53317-VM6-000 |
— | ||
|
7
|
7
90244-VM6-000
Nut,lock 42mm
|
90244-VM6-000 |
— | ||
|
8
|
8
90305-169-000 Nut, axle (12mm) |
90305-169-000 |
from US $4.74 |
||
|
9
|
9
91347-PY3-000 O-ring16.8X1.9 |
91347-PY3-000 |
from US $1.67 |
||
|
10
|
10
93500-050280G Screw, pan, 5x28 |
93500-050280G |
from US $0.44 |
||
|
11
|
11
94101-12800 WasherPLAIN, 12MM |
94101-12800 |
from US $0.41 |
||
|
12
|
12
9420130280 Pin, split, 3.0x28 |
9420130280 |
from US $0.44 |
||
|
12
|
12
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
12
|
12
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
12
|
12
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
13
|
13
96150-6203310 Bearing (6203uu) |
96150-6203310 |
from US $8.14 |
||
