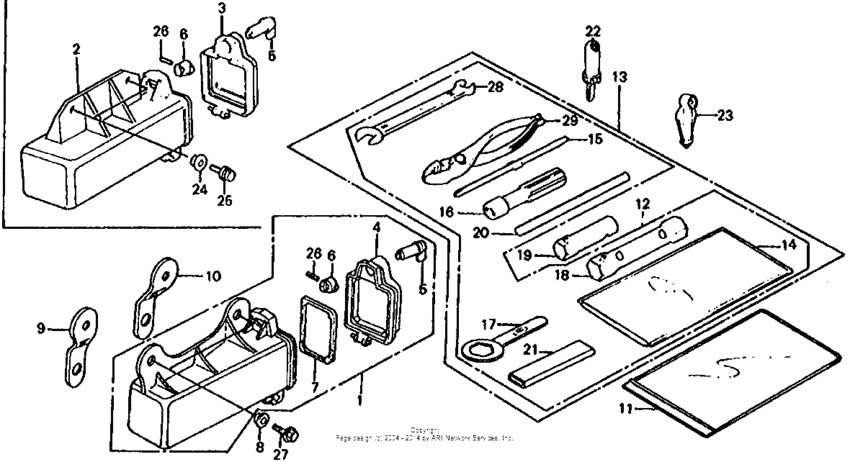

Tools Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
83501-968-000
Box, tool
|
83501-968-000 |
— | ||
|
3
|
3
83504-968-000 Cap, tool box |
83504-968-000 |
US $24.40 |
||
|
5
|
5
83507-965-000
Body, knob
|
83507-965-000 |
— | ||
|
6
|
6
83508-965-000
Stopper, key body
|
83508-965-000 |
— | ||
|
13
|
13
89000-943-800
Tool set
|
89000-943-800 |
— | ||
|
14
|
14
89101-965-003
Bag, tool (170)
|
89101-965-003 |
— | ||
| replacements | |||||
|
14
|
14
89101-ME5-670
Bag, tool
|
89101-ME5-670 |
— | ||
|
14
|
14
89101-MC7-000 Tool bag |
89101-MC7-000 |
from US $6.81 |
||
|
15
|
15
89102-538-000 Driver, SCREW(NO.2 + -) |
89102-538-000 |
from US $2.37 |
||
|
16
|
16
89103-538-000 Grip |
89103-538-000 |
US $6.78 |
||
|
17
|
17
89218-MN8-000 Wrench, eye (17) |
89218-MN8-000 |
US $21.69 |
||
|
18
|
18
89213-968-000
Wrench, box (18x17)
|
89213-968-000 |
— | ||
|
19
|
19
89215-968-000
Wrench, box (17mm)
|
89215-968-000 |
— | ||
|
20
|
20
9900501000 Bar a, handle |
9900501000 |
from US $1.48 |
||
|
21
|
21
89217-968-000 Handle (120) |
89217-968-000 |
from US $8.01 |
||
|
23
|
23
89301-918-672
Gauge, tire
|
89301-918-672 |
— | ||
|
24
|
24
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
25
|
25
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
26
|
26
9430520141 Pin, spring (2x14) |
9430520141 |
from US $0.74 |
||
|
28
|
28
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
29
|
29
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
29
|
29
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
