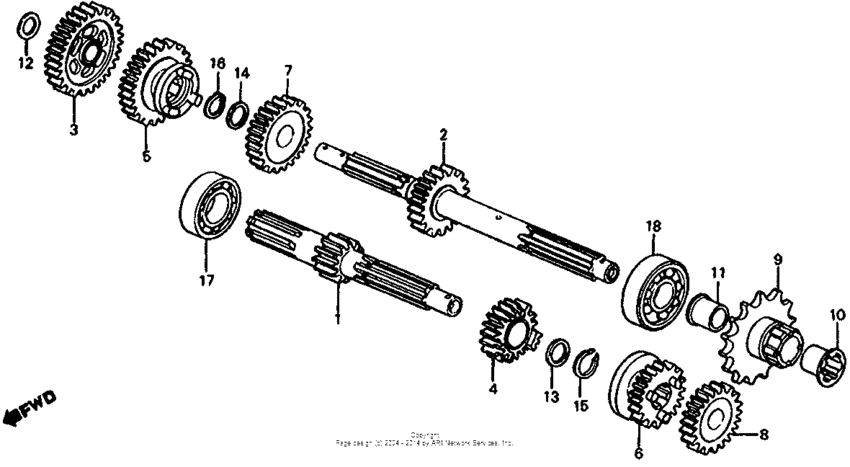

Transmission Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-968-000
Mainshaft, trans
|
23211-968-000 |
— | ||
|
2
|
2
23220-VM6-000
Shaft ctr.trans
|
23220-VM6-000 |
— | ||
|
3
|
3
23421-968-000
Gear
|
23421-968-000 |
— | ||
|
4
|
4
23431-968-000
Gear
|
23431-968-000 |
— | ||
|
5
|
5
23441-968-000
Gear
|
23441-968-000 |
— | ||
|
6
|
6
23451-968-000 Gear (21t) |
23451-968-000 |
from US $46.05 |
||
|
7
|
7
23461-968-000 Gear (25t) |
23461-968-000 |
US $40.53 |
||
|
8
|
8
23471-968-000 Gear (24t) |
23471-968-000 |
US $40 |
||
|
9
|
9
23801-VM6-000
Sprkt,drive 13t
|
23801-VM6-000 |
— | ||
|
10
|
10
23807-459-770
Bush b
|
23807-459-770 |
— | ||
|
11
|
11
23807-459-770
Bush b
|
23807-459-770 |
— | ||
|
12
|
12
90451-121-000 Washer (14mm) |
90451-121-000 |
from US $1.78 |
||
|
13
|
13
90461-028-000 Washer (18mm) |
90461-028-000 |
US $2.44 |
||
|
14
|
14
90461-459-010 Washer (20mm) |
90461-459-010 |
from US $3.18 |
||
|
15
|
15
90601-030-000 Circlip (18mm) |
90601-030-000 |
from US $2.44 |
||
|
16
|
16
90601-459-000 Circlip (20mm) |
90601-459-000 |
from US $3.11 |
||
|
17
|
17
96100-6004000 Bearing, radial ball, 6004 |
96100-6004000 |
from US $6.66 |
||
|
18
|
18
96100-6204000 Bearing, radial ball, 6204 |
96100-6204000 |
from US $6.66 |
